Camshaft Seal [2017-2018, B4204T11]: Removal

Remove the variable valve timing unit, refer to: VVT UNIT

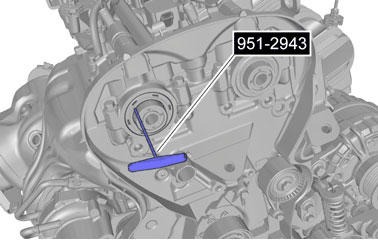

GLL1022539Courtesy of VOLVO CARS CORPORATION
CAUTION:

Make sure that the area around the component is clean and free of foreign material.

CAUTION:

Make sure that the sharp edge does not damage the surrounding component.

Special Tool: 951 2943
