Auxiliary Drive Belt [2016, B5254T12]: Installation

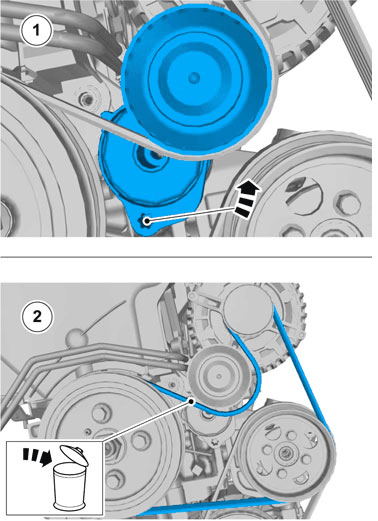

VEHICLES EARLY VERSION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

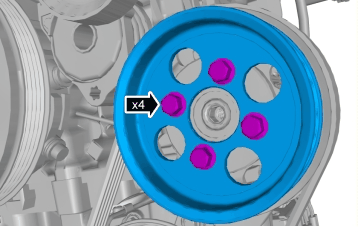

Torque: M8, 24Nm

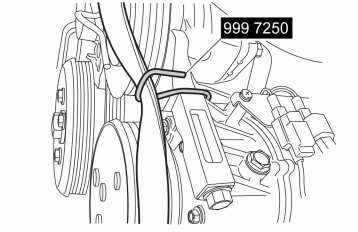

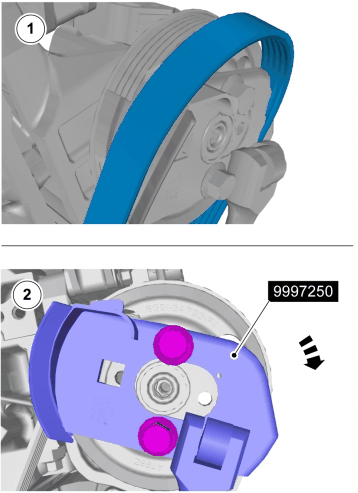

VEHICLES LATE VERSION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

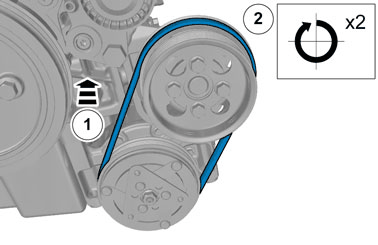

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

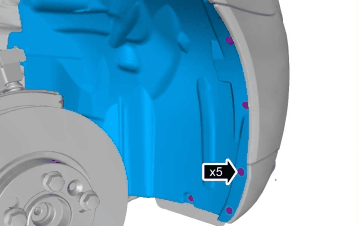

Install right wheel, refer to: WHEELS
