Components With Double-Sided Tape [2016-2017]: Installation

Courtesy of VOLVO CARS CORPORATION

NOTE:

Apply a pressure of 35 - 50 N/cm2 for 2-3 seconds. This corresponds to a thumb pressure of 3.5 - 5 kg - test with scales first. If the palm of a hand or an application roller is used, remember that the larger surface requires greater force.

Use: Applicator, 1161825

Use: Primer, 1161727 Use: Paint primer, 30644414 (CN) Use: Paint primer, 31480527 (US) Use: Paint primer, 31480528 (CA)

Courtesy of VOLVO CARS CORPORATION

NOTE:

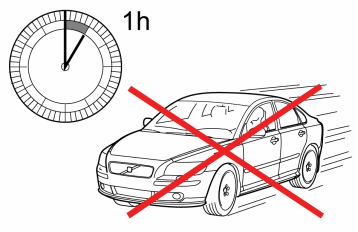

Do not drive the vehicle until the specified time has elapsed.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the customer is advised not to wash the vehicle within the next 72 hours.
