Masking Of Window Seal Strips When Painting Roof

Courtesy of VOLVO CARS CORPORATION

The roof has an integrated seal strip against the roof.

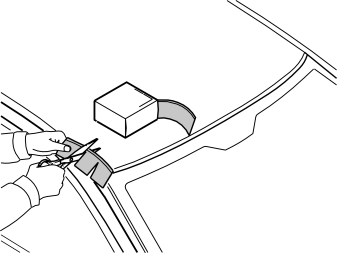

To avoid removing the windows when painting, use of 3M's masking tape with the following part number is recommend:

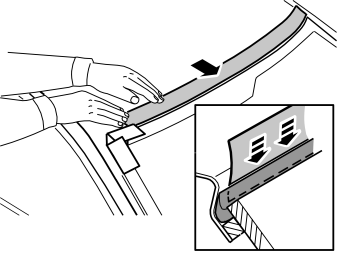

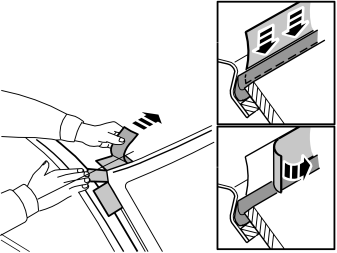

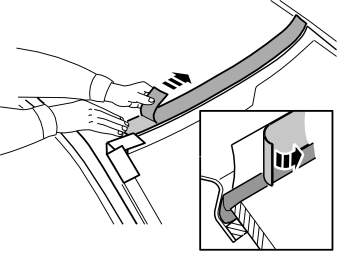

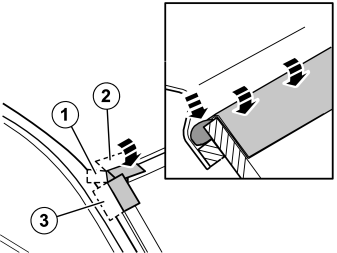

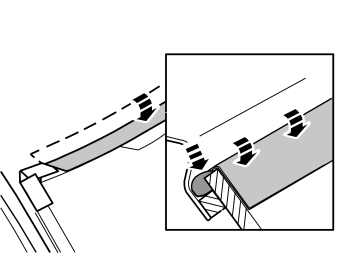

The masking consists of two plastic foil pieces that are to be inserted between the window seal strip and the roof side, and are then to be taped against the rear window.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION
