Receiver TV [2016-2018]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

Remove right side panel cargo compartment, refer to: SIDE PANEL LOADSPACE

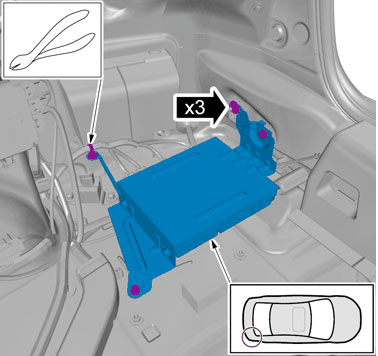

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

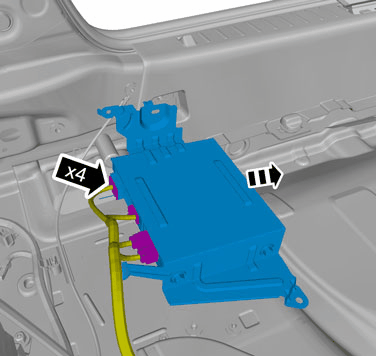

Courtesy of VOLVO CARS CORPORATION

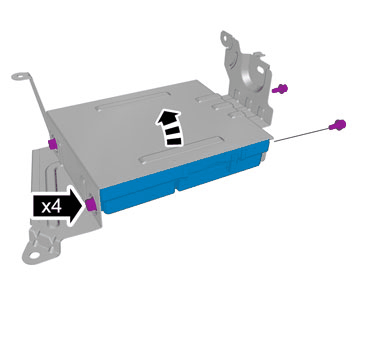

Courtesy of VOLVO CARS CORPORATION

Torque: M5, 5Nm
