TV Antenna Amplifier [2016-2018]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

GLL166009

Courtesy of VOLVO CARS CORPORATION

Remove right side panel c-pillar, refer to: C-PILLAR TRIM PANEL

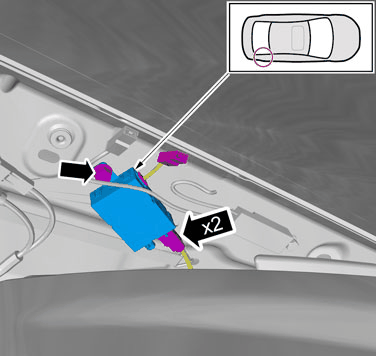

GLL173646

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

Remove left side panel c-pillar, refer to: C-PILLAR TRIM PANEL

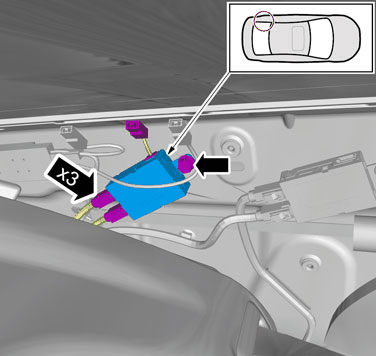

GLL173647

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm
