Washer Fluid Reservoir [2016-2018]: Removal

Courtesy of VOLVO CARS CORPORATION

See information on component position washer reservoir, refer to: LOCATION OF COMPONENTS, WASHER RESERVOIR

Remove left side casing bumper front, refer to: COVER BUMPER FRONT

Remove the headlamp, refer to: HEADLAMPS

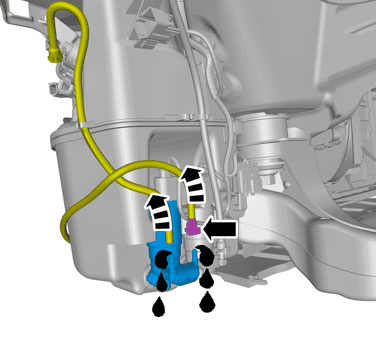

Courtesy of VOLVO CARS CORPORATION

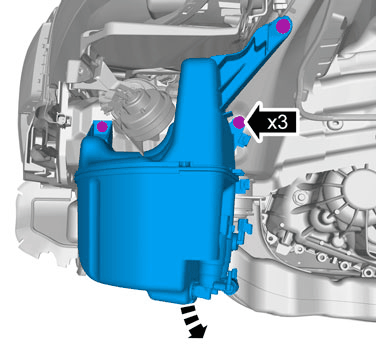

Courtesy of VOLVO CARS CORPORATION

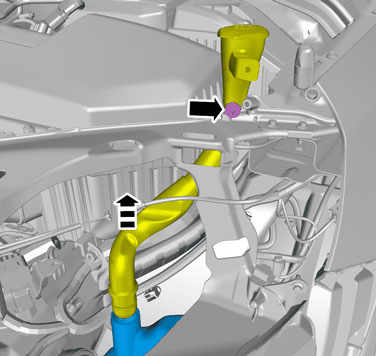

Courtesy of VOLVO CARS CORPORATION

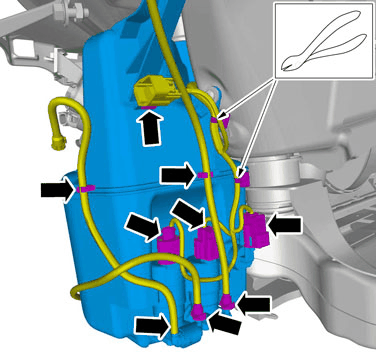

Courtesy of VOLVO CARS CORPORATION
