Stop Lamp Switch, Adjustment [2017-2018, B4204T11, TG-81SC AWD | 2016, B5254T12, TF-80SC AWD]: Installation

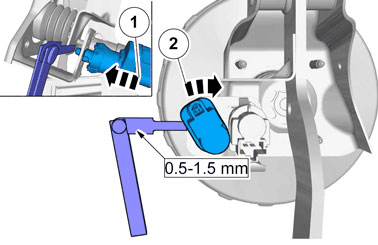

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Both switches must be removed before installing a new switch.

CAUTION:

Make sure that the brake pedal remains in the rest position.

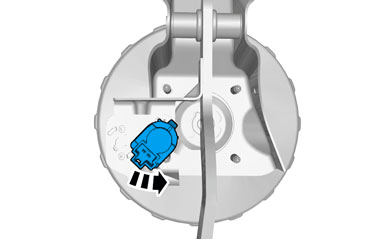

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the brake pedal remains in the rest position.

Use: Feeler gauge

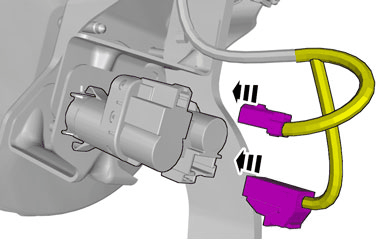

Courtesy of VOLVO CARS CORPORATION

Check according to: DIAGNOSTICS/VEHICLE COMMUNICATION/Advanced/CEM/Checking and adjusting, brake light switch and brake pedal position switch
