Microphone Telephone [2016-2018]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

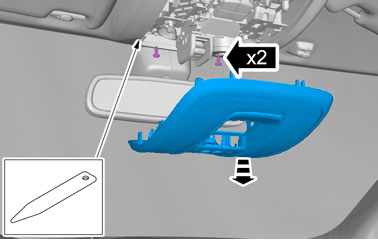

Courtesy of VOLVO CARS CORPORATION

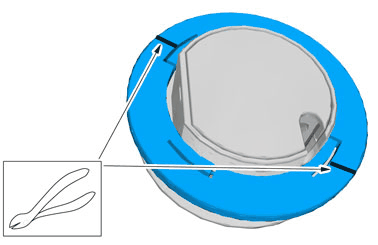

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

Remove panel A-pillar, refer to: A-PILLAR TRIM PANEL

Remove the B-pillar trim panel, refer to: B-PILLAR TRIM PANEL

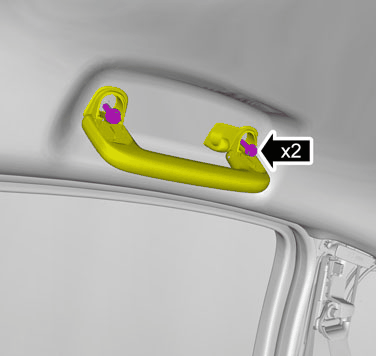

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to crease the headliner.

Courtesy of VOLVO CARS CORPORATION

Use: Anti-squeak tape, 1161842

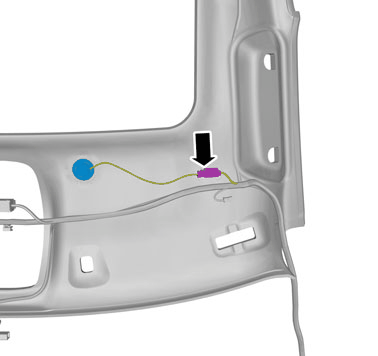

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.

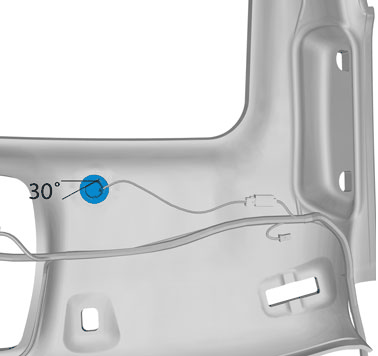

Courtesy of VOLVO CARS CORPORATION
