Anti-Theft Protection Siren [2016-2018]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

GLL166009Courtesy of VOLVO CARS CORPORATION

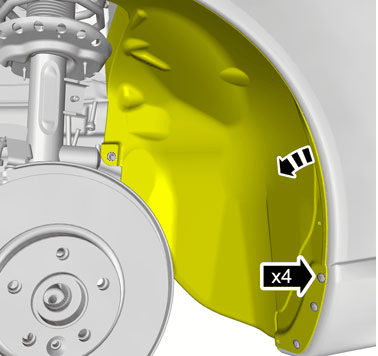

GLL171318Courtesy of VOLVO CARS CORPORATION

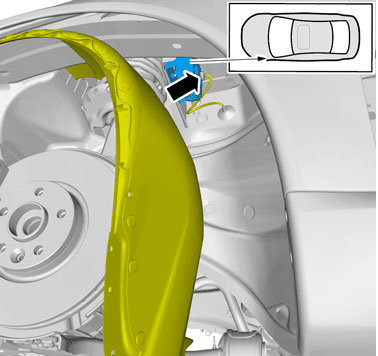

GLL171319Courtesy of VOLVO CARS CORPORATION

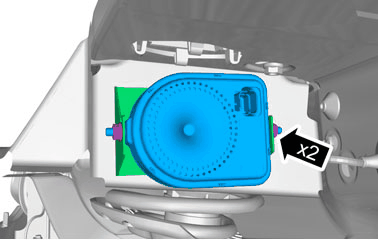

GLL171314Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

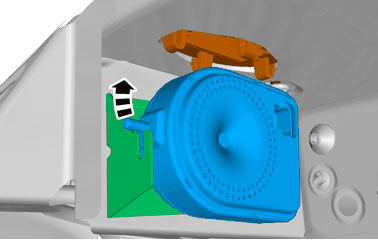

GLL171315Courtesy of VOLVO CARS CORPORATION

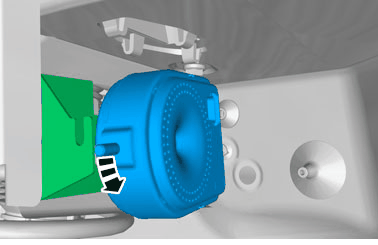

GLL171316Courtesy of VOLVO CARS CORPORATION
