Flex Plate, Check [2016-2020, B4204T23; B4204T27, TG-81SC; TG-81SC AWD]: Removal

Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY

Remove the crankshaft position sensor, refer to: CRANKSHAFT POSITION SENSOR

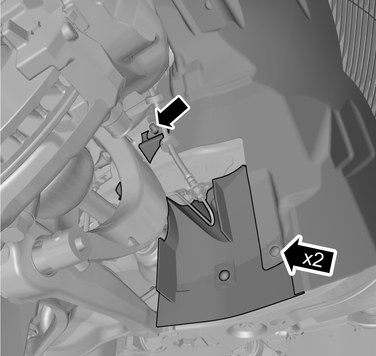

GLL1025137Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the nut.

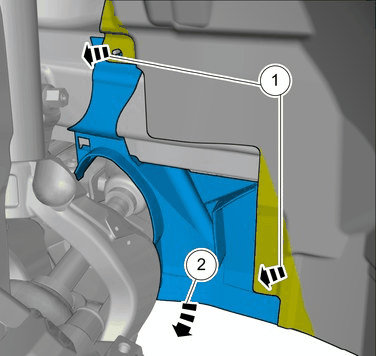

GLL1002090Courtesy of VOLVO CARS CORPORATION
  1. Fold marked part aside.
  2. Remove the marked part.

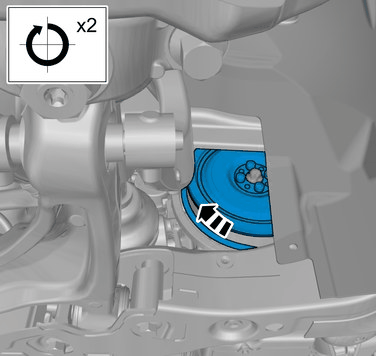

GLL1023279Courtesy of VOLVO CARS CORPORATION

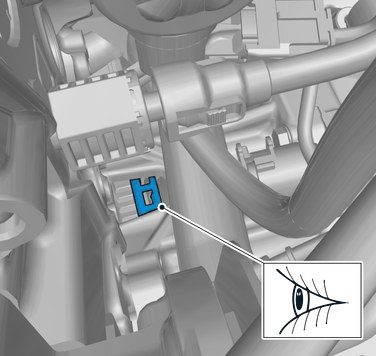

GLL1007965Courtesy of VOLVO CARS CORPORATION
CAUTION:

Check that the component does not show deformation damage.
