Turbocharger [2016-2020, B4204T27 | 2016-2020, B4204T28 | 2020, B4204T39]: Removal

Courtesy of VOLVO CARS CORPORATION

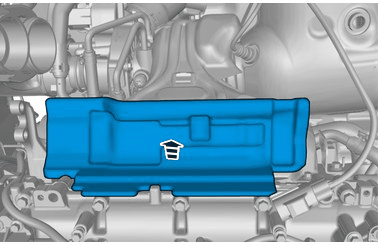

Loosen the screws.

Remove the marked part.

Perform cooling system draining, charging and bleeding, refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING

Remove the compressor, refer to: SUPERCHARGER

Courtesy of VOLVO CARS CORPORATION

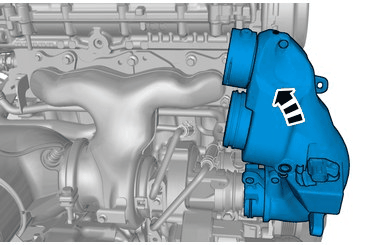

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Remove the catalytic converter, refer to: CATALYTIC CONVERTER

Courtesy of VOLVO CARS CORPORATION

Loosen the hose clamp.

Release the lock.

A click confirms that the component is in the correct position.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Remove the hose.

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

1. Torque:  Oil pressure pipe to the turbocharger, 26Nm
2. Torque:  M6, 10Nm

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

1. Torque:Exhaust manifold to cylinder head, nut,

   • Stage 1: 20Nm
   • Stage 2: 20Nm
   ,

2. Torque:Exhaust manifold to cylinder head, bolt,

   • Stage 1: 20Nm
   • Stage 2: 20Nm
   ,

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
