Muffler Rear [2016-2020, B4204T23 | 2016-2020, B4204T27 | 2016-2020, B4204T28 | 2020, B4204T39]: Removal
Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE
Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY
NOTE:

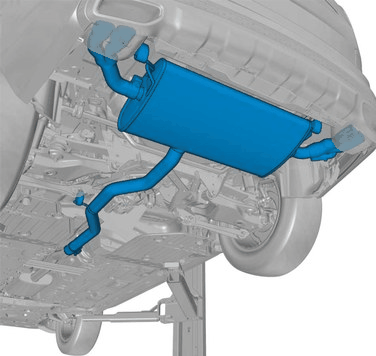

Orientation view
The image shows an example.
Locate relevant marking.
Use: Pipe cutter
NOTE:
The image content (components etc.) may vary depending on equipment level or for other reasons.
Disconnect the connector.
Loosen the marked detail/details.
