Camshaft Position Sensor, Exhaust Side [2016-2020, B4204T23 | 2016-2020, B4204T27 | 2016-2020, B4204T28 | 2020, B4204T39]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

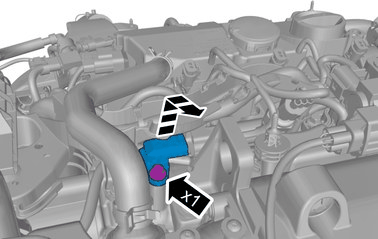

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Remove the marked part.

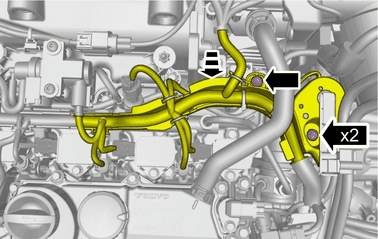

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Fold marked part aside.

Torque: M6, 10Nm

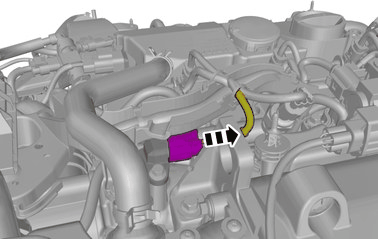

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Check that the connector(s) is/are properly connected.

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Remove the marked part.

Torque: M6, 10Nm
