Air Pressure And Air Temperature Sensor 1 [2020, B4204T23 | 2020, B4204T27 | 2020, B4204T28 | 2020, B4204T39]: Removal

GLL1037391Courtesy of VOLVO CARS CORPORATION

Release the lock.

Disconnect the connector.

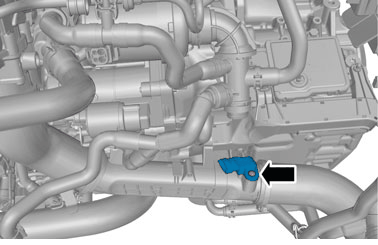

GLL1034708Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Remove the marked part.
