Fuel Tank Filler Pipe Nozzle [2016-2018, 2020 | 2019, B4204T23; B4204T27 | 2019, B4204T28]: Removal

Courtesy of VOLVO CARS CORPORATION

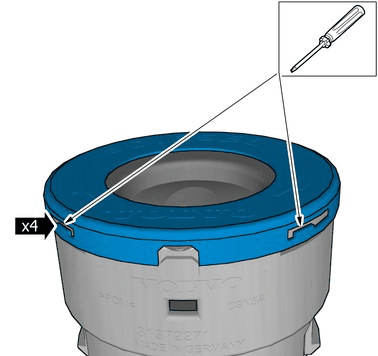

Loosen the clips.

Courtesy of VOLVO CARS CORPORATION

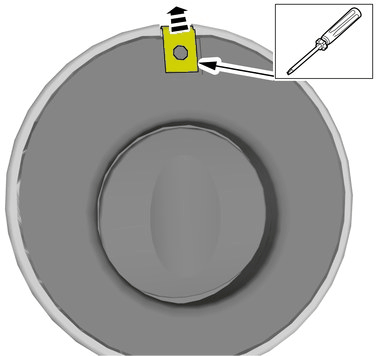

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

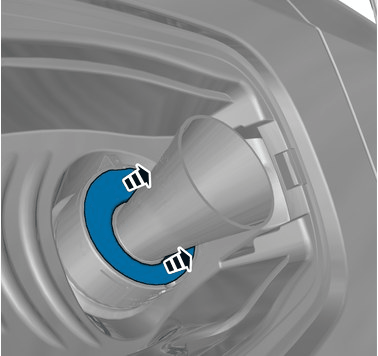

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

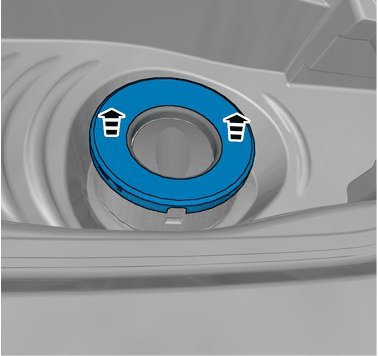

Lift the marked component up
