Fuel System Pressure Release [2016-2020, B4204T23; B4204T27; B4204T28 | 2020, B4204T39]: Depressurizing

Courtesy of VOLVO CARS CORPORATION

NOTE:

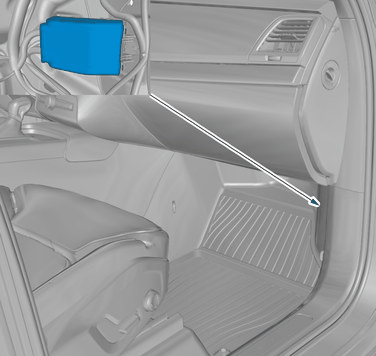

Orientation view

Courtesy of VOLVO CARS CORPORATION

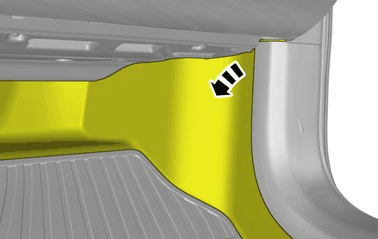

Fold the carpet aside.

Courtesy of VOLVO CARS CORPORATION

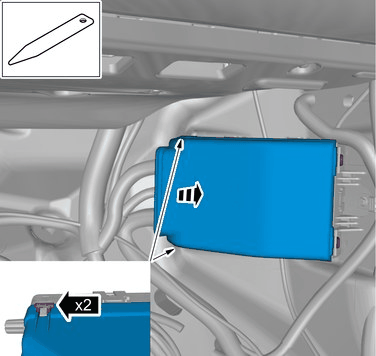

Interior trim remover

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

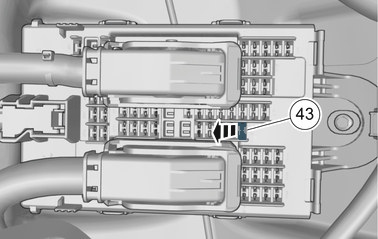

Remove the fuse for the fuel pump (FP).
