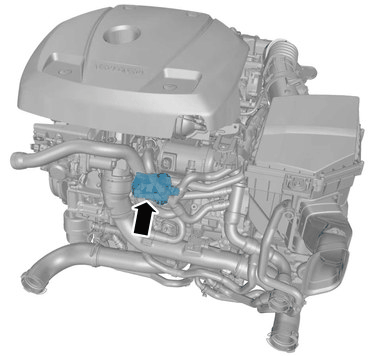

Electric Drivetrain Coolant Pump EDCP [2016-2020, B4204T28 | 2020, B4204T39]: Removal

Courtesy of VOLVO CARS CORPORATION

Drain the cooling system, refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING

Remove the engine cooling fan, refer to:ENGINE COOLING FAN

Courtesy of VOLVO CARS CORPORATION

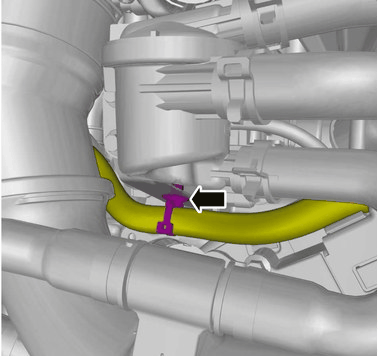

Loosen the clip.

Courtesy of VOLVO CARS CORPORATION

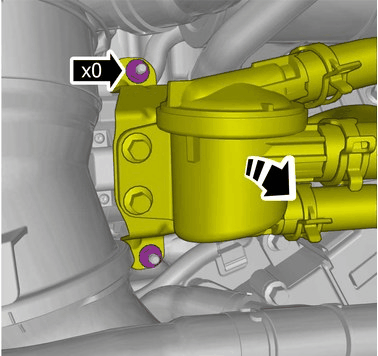

Remove the nuts.

Fold marked part aside.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

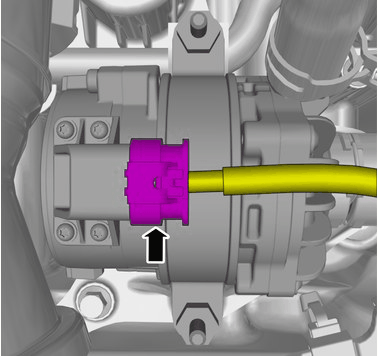

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

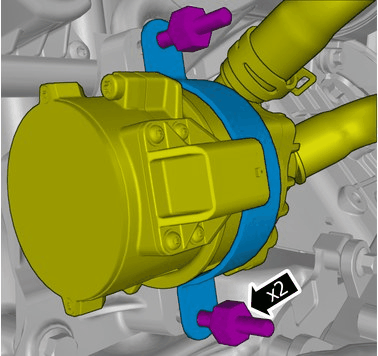

Remove the screws.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

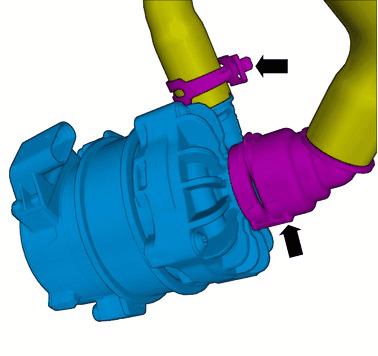

Loosen the hose clamp.

Undo the hoses from the connections.
