Bypass Valve, A/C Cooling [2016-2020, B4204T28 | 2020, B4204T39]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove Inverter Generator Module (IGM), refer to: INVERTER GENERATOR MODULE

Courtesy of VOLVO CARS CORPORATION

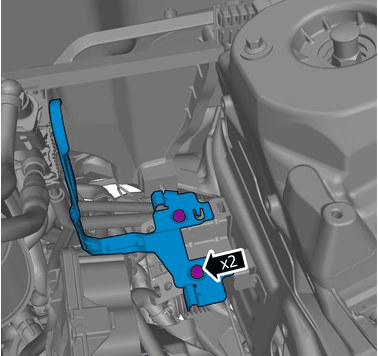

Remove the screws.

Torque: IGM, to Body frame, 13Nm

Courtesy of VOLVO CARS CORPORATION

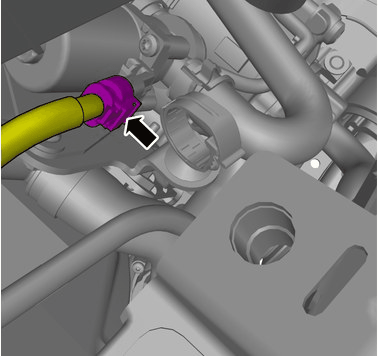

Release the lock.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Release the lock.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

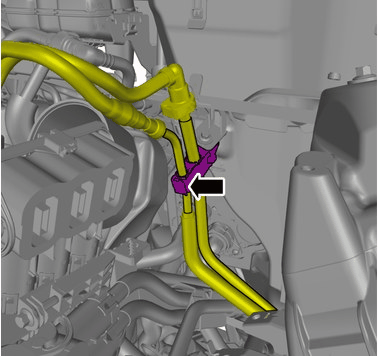

Release the lock.

Fold marked part aside.

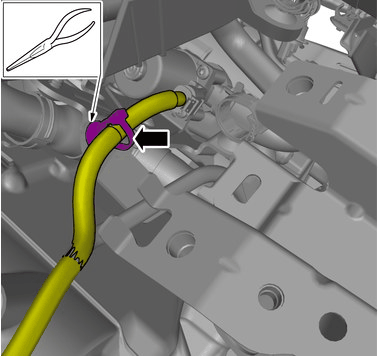

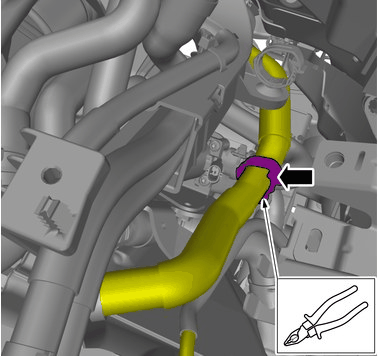

Use: Pliers

Loosen the clip.

Courtesy of VOLVO CARS CORPORATION

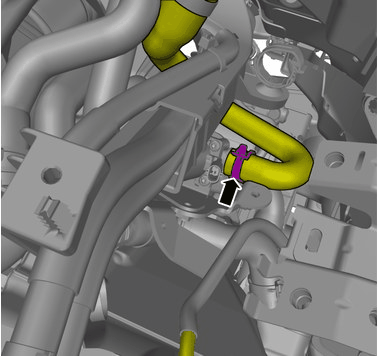

Use: Pliers

Loosen the clip.

Courtesy of VOLVO CARS CORPORATION

Release the connector's catch.

Disconnect the connector.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

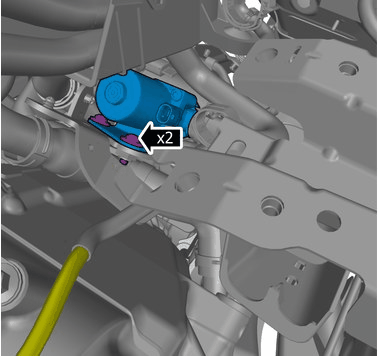

Loosen the screws.

Torque: M5, 5Nm

Courtesy of VOLVO CARS CORPORATION

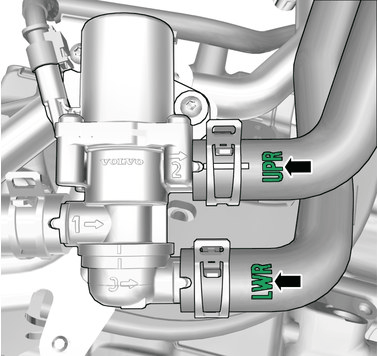

Loosen the hose clamp.

Undo the hose from the connection.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

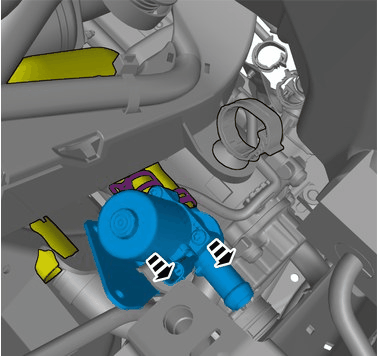

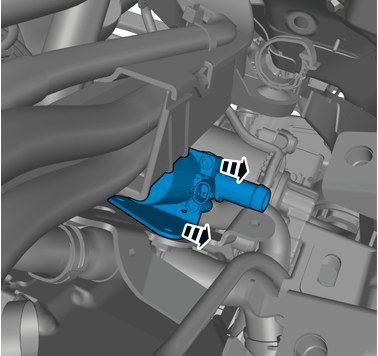

Lift the marked component forward.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Note the routing of the lines and hoses.

CAUTION:

Note the position of the components before removal.

Courtesy of VOLVO CARS CORPORATION

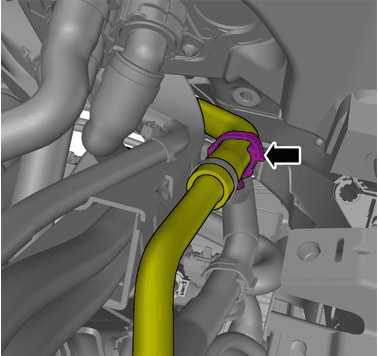

Loosen the hose clamps.

Undo the hoses from the connections.
