Bypass Valve, A/C Cooling [2016-2020, B4204T23 | 2016-2020, B4204T27]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

NOTE:

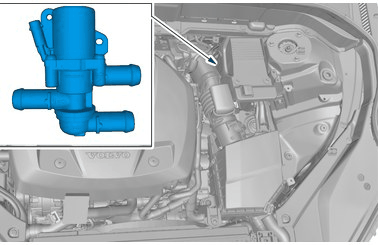

Orientation view

Drain cooling system, draining, filling, and bleeding, refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING

Remove support battery, refer to: SUPPORT BATTERY

Remove the battery control switch module bcsm, refer to: BATTERY CONTROL SWITCH MODULE BCSM

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the seal is correctly located.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Release the locks.

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

Release the catches.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: M6, 10Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

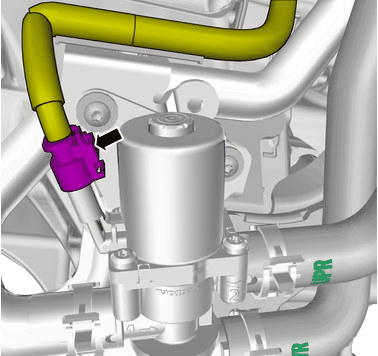

Disconnect the connector.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Note the routing of the lines and hoses.

CAUTION:

Note the position of the components before removal.

Courtesy of VOLVO CARS CORPORATION

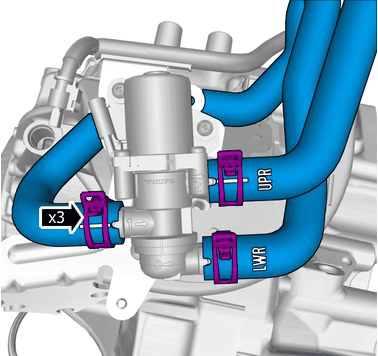

Loosen the hose clamps.

Undo the hoses from the connections.

Courtesy of VOLVO CARS CORPORATION

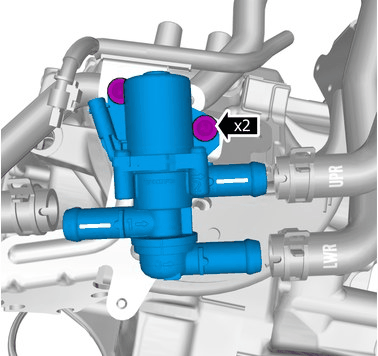

Remove the screws.

Torque: M5, 5Nm
