Battery Cooling System Separator Hose [2016-2020, B4204T28 | 2020, B4204T39]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Drain cooling system high voltage battery, draining, charging and bleeding, refer to: HIGH VOLTAGE BATTERY COOLING SYSTEM, DRAINING, FILLING, AND BLEEDING

Remove the air filter housing, refer to: AIR CLEANER HOUSING

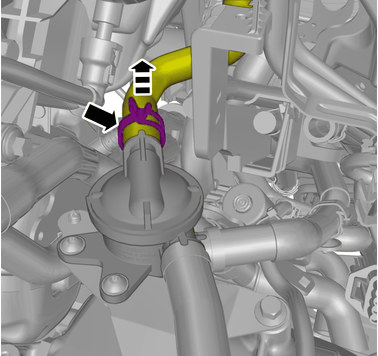

Courtesy of VOLVO CARS CORPORATION

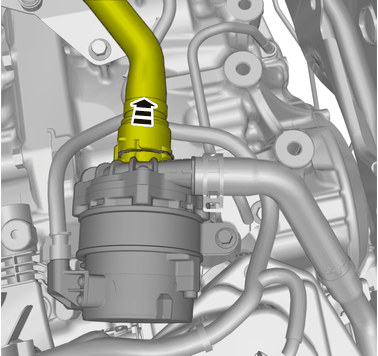

Release the catch.

Undo the hose from the connection.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Loosen the hose clamp.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Loosen the clip.

Remove the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

Courtesy of VOLVO CARS CORPORATION

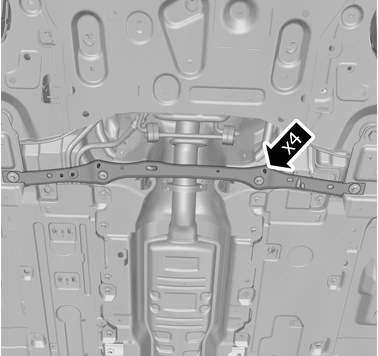

Remove the screws.

Torque: M8, 24Nm
Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use a new seal.

Remove the nuts.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

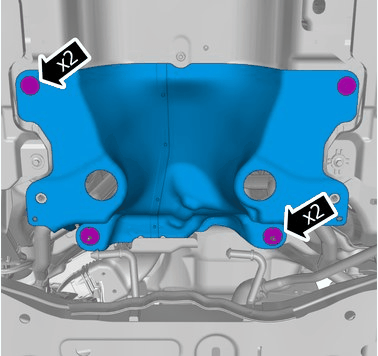

Remove the nuts.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

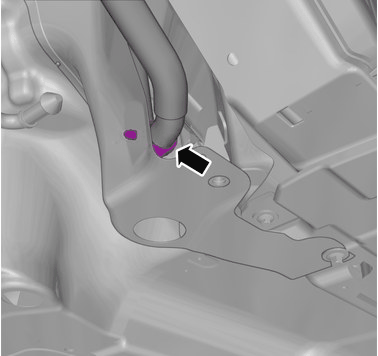

Remove the nut.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Loosen the marked detail/details.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use a new seal.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

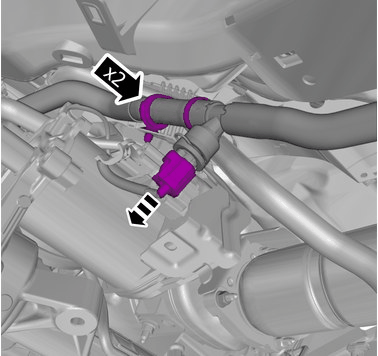

Loosen the clips.

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Loosen the clip.

Courtesy of VOLVO CARS CORPORATION

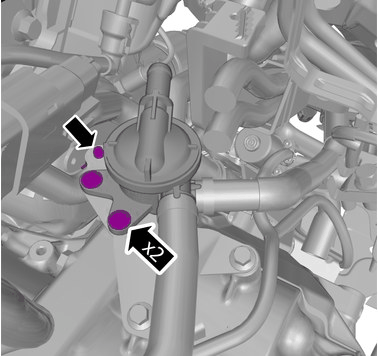

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

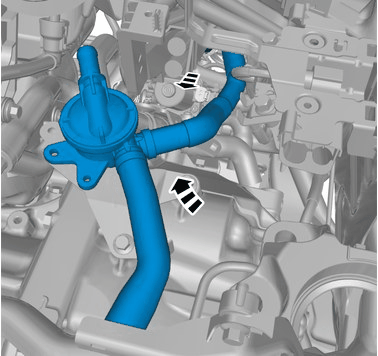

Undo the hose from the connection.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

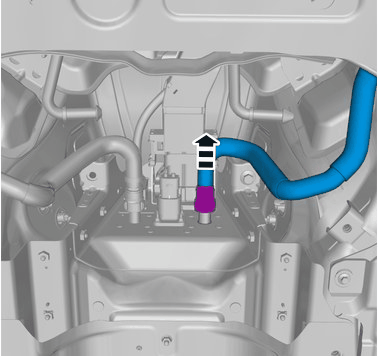

Pull carefully.

Remove the marked part.
