Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

NOTE:

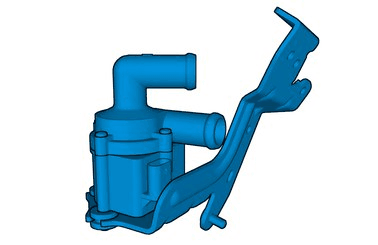

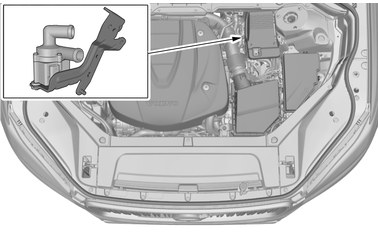

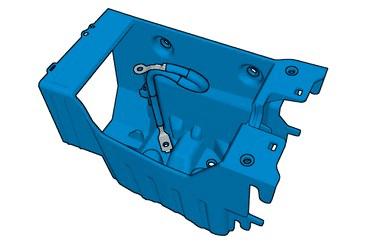

Orientation view

Remove the following items:

support battery, refer to: SUPPORT BATTERY
battery control switch module BCSM, refer to: BATTERY CONTROL SWITCH MODULE BCSM

Courtesy of VOLVO CARS CORPORATION

NOTE:

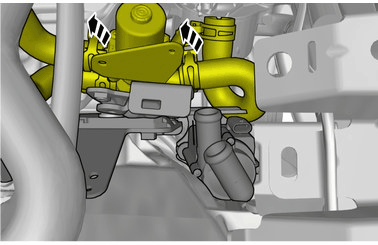

Make sure that the seal is correctly located.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

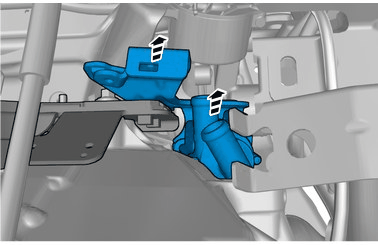

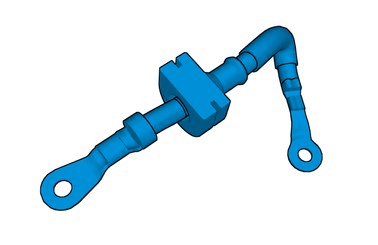

Release the locks.

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

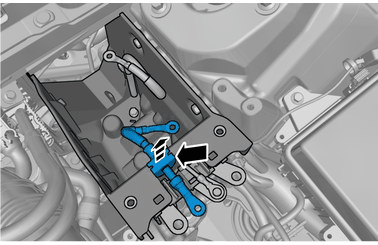

Release the catches.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

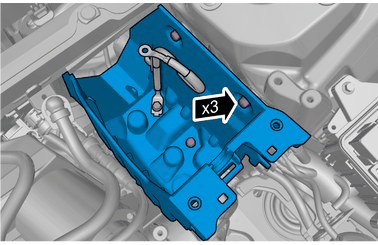

Remove the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

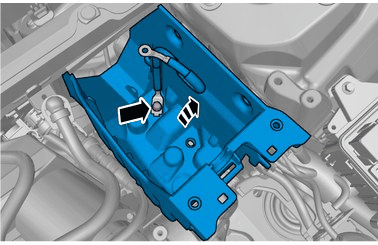

Remove the screw.

Remove the marked part.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

VEHICLES WITH BYPASS VALVE

CAUTION:

Note the position of the components before removal.

Courtesy of VOLVO CARS CORPORATION

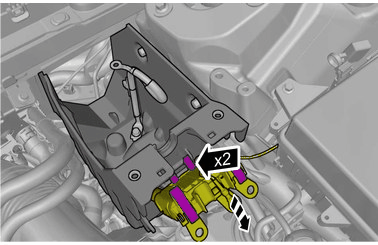

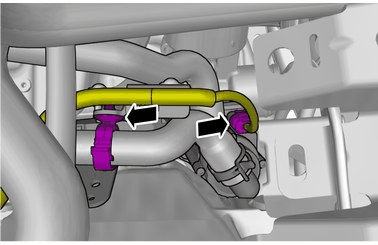

Remove the clip.

Disconnect the connectors.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use suitable paper to absorb any escaping fluid.

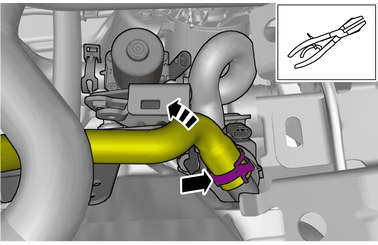

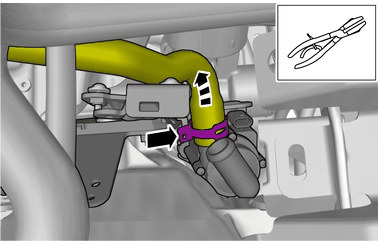

Loosen the hose clamp.

Undo the hose from the connection.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use suitable paper to absorb any escaping fluid.

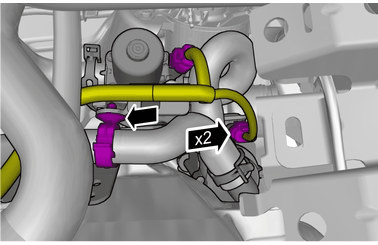

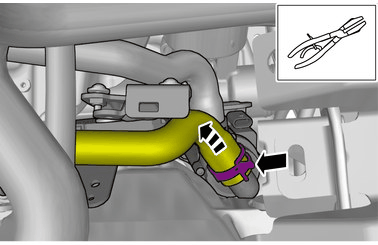

Loosen the hose clamp.

Undo the hose from the connection.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M5, 5Nm

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

VEHICLES WITHOUT BYPASS VALVE

CAUTION:

Note the position of the components before removal.

Courtesy of VOLVO CARS CORPORATION

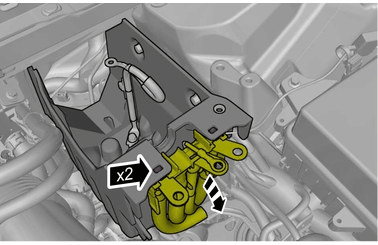

Remove the clip.

Disconnect the connectors.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use suitable paper to absorb any escaping fluid.

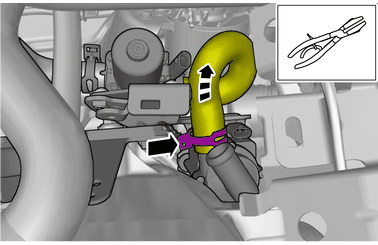

Loosen the hose clamp.

Undo the hose from the connection.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use suitable paper to absorb any escaping fluid.

Loosen the hose clamp.

Undo the hose from the connection.

Fold marked part aside.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

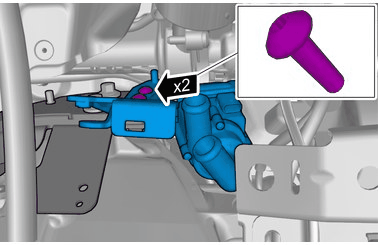

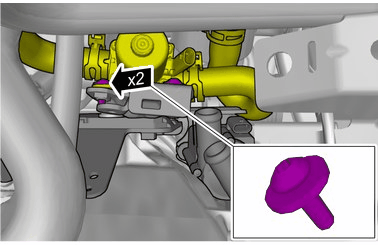

Remove the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use suitable paper to absorb any escaping fluid.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

INSTALLATION

To install, reverse the removal procedure.

CHECK

Post-fill the cooling system if necessary.

Fill the engine cooling system with Volvo Original Coolant.
