Auxiliary Water Pump [2016-2019, B4204T28, TG-81SC | 2020, B4204T28; B4204T39, TG-81SD]: Installation

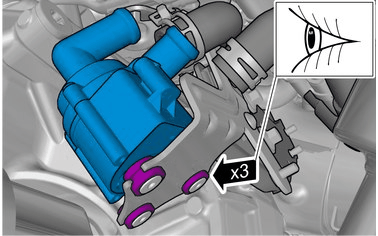

GLL1034590Courtesy of VOLVO CARS CORPORATION
CAUTION:

Make sure that the components are positioned correctly.

To install, reverse the removal procedure.

Fill the cooling system, refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING
