Cooling System - Draining, Charging And Bleeding [2016-2020, B4204T23; B4204T27 | 2016-2020, B4204T28 | 2020, B4204T39]: Drainage

Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY

Courtesy of VOLVO CARS CORPORATION

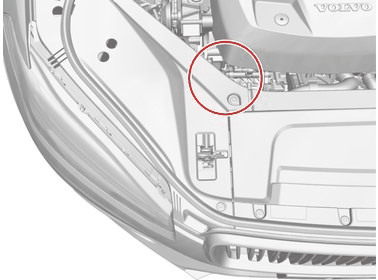

Remove the screws.

Loosen the clips.

Remove the marked part.

Lower the car.

Courtesy of VOLVO CARS CORPORATION

ALTERNATIVE 1

Courtesy of VOLVO CARS CORPORATION

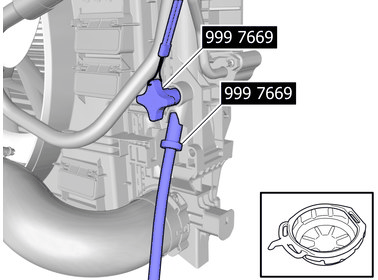

1. Refer to: Special Tool: 999 7669
2. Use:  Collection container

Courtesy of VOLVO CARS CORPORATION

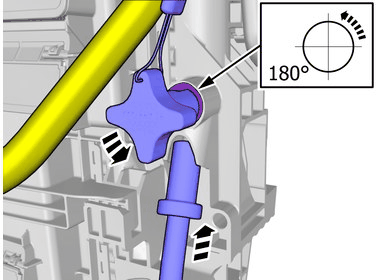

Install the tools.

Open the valve.

Drain the coolant.

ALTERNATIVE 2

Courtesy of VOLVO CARS CORPORATION

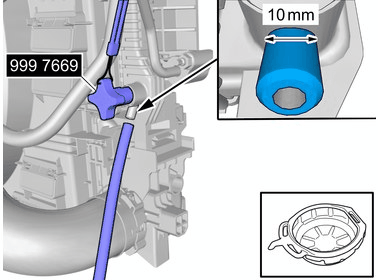

1. Refer to: Special Tool: 999 7669
2. Use:  Collection container

Courtesy of VOLVO CARS CORPORATION

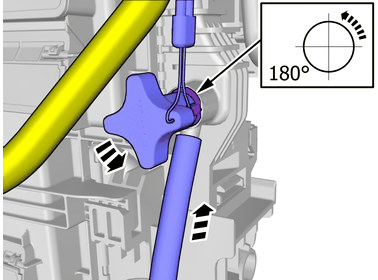

Install the tools.

Open the valve.

Drain the coolant.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

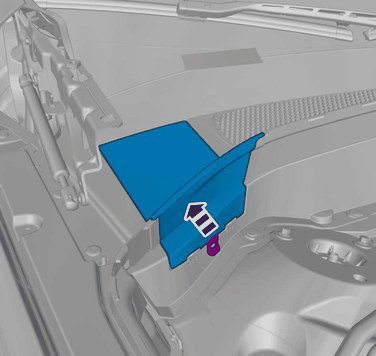

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

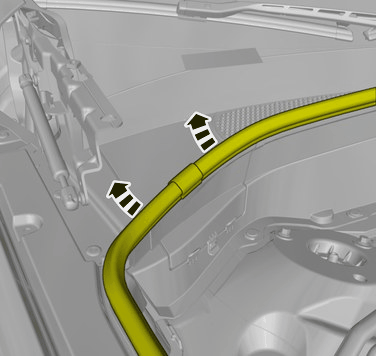

Release the catch.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

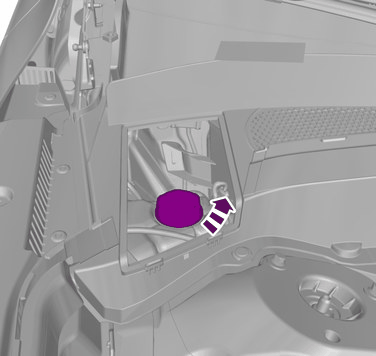

Remove the marked part.
