Vibration Damper [2016-2017, B4204T23 | 2016-2017, B4204T27]: Installation
NOTE:

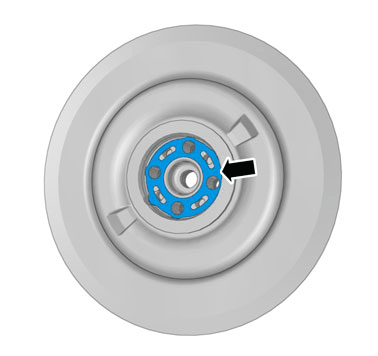

Make sure that a new component is installed.

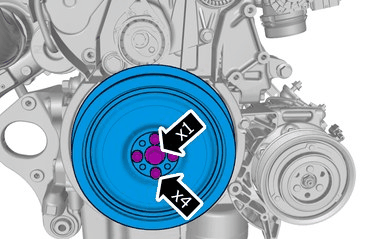

Install the screws.
Use hands only.

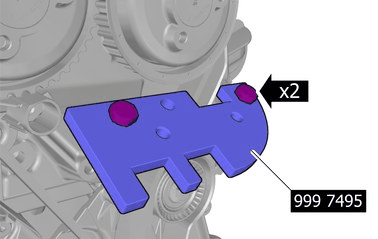

Refer to: R Special Tool: 999 7495
Torque: M12, 80Nm

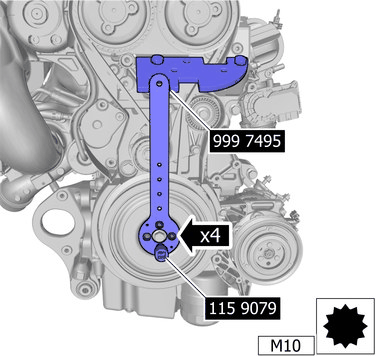

Refer to: Special Tool: 115 9079 and Special Tool: 999 7495
Tighten the bolts.
Torque:Oscillation damper (screw) to crankshaft,
- Stage 1: 20 Nm
- Stage 2: 90 °

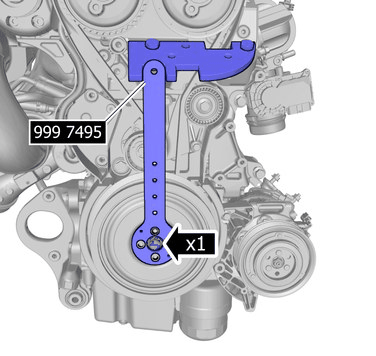

Refer to: Special Tool: 999 7495
Tighten the screw.
Torque:Central screw oscillation damper (crankshaft),
- Stage 1: 110 Nm
- Stage 2: 90 °
Remove the Special Tool.
To install, reverse the removal procedure.
