Front SUBFRAME, Service Position [2016-2019, B4204T28 | 2020, B4204T28; B4204T39, TG-81SD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

Fold the carpet aside.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the road wheels are in the straight ahead position.

Remove the screw.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Release the catches.

Use: Strip clamp, 983750

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the clips.

Courtesy of VOLVO CARS CORPORATION

On both sides.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Release the locks.

Release the catches.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

Use a cable tie

Use: Cable tie, 750 mm, 988734

Courtesy of VOLVO CARS CORPORATION

Use a cable tie

Use: Cable tie, 750 mm, 988734

Remove the front wheels, refer to: WHEELS

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the clips.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the clip.

Courtesy of VOLVO CARS CORPORATION

Remove the nuts.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

On both sides.

Remove the nut.

Torque: Tie rod end to wheel knuckle, 100Nm

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 951 2923

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 999 7622

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure to place the component as the graphic shows.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to damage the seal.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Only use the specified special tool.

Courtesy of VOLVO CARS CORPORATION

If necessary

Use: Brass drift

Courtesy of VOLVO CARS CORPORATION

On both sides.

Remove the nut.

Torque: Front stabilizer bar link to stabilizer bar, 90Nm

Courtesy of VOLVO CARS CORPORATION

On both sides.

Remove the screw.

Torque:Shock Absorber Fork to Front Lower Control Arm,

Stage 1: 140 Nm
Stage 2: 180 °

Courtesy of VOLVO CARS CORPORATION

On both sides.

Lift the marked component up

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure to place the component as the graphic shows.

On both sides.

Courtesy of VOLVO CARS CORPORATION

On both sides.

Remove the screws.

Torque: Wheel knuckle bracket, to wheel knuckle, 110Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: Lower torque rod rear right, to Engine mount bracket, 110Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: Lower torque rod rear left, to transmission bracket, 110Nm

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: M8, 24Nm

APPLIES TO THE RIGHT-HAND SIDE

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the tool fits.

Refer to: Special Tool: 999 7683

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Note the placing of the tool.

APPLIES TO THE LEFT-HAND SIDE:

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the tool fits.

Refer to: Special Tool: 999 7536

ON BOTH SIDES.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Loosen the component indicated. Do not remove it.

Torque:Collision member to subframe,

Stage 1: 25 Nm
Stage 2: 180 °

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque:Subframe to chassis (Front screws),

Stage 1: 140 Nm
Stage 2: 270 °

VEHICLES EARLY VERSION

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M8, 24Nm

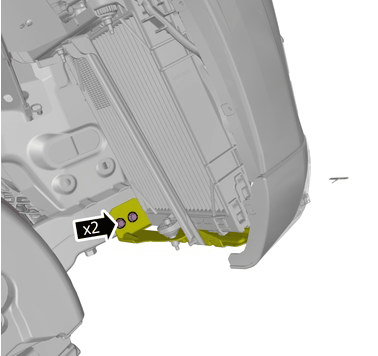

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 951 2951

Remove the screws.

Torque:Subframe to chassis (Rear screws),

Stage 1: 140 Nm
Stage 2: 150 °

VEHICLES LATE VERSION

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 951 2951

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M8, 24Nm
Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Loosen the clips.
Torque:Subframe to chassis (Rear screws),
- Stage 1: 140 Nm
- Stage 2: 150 °

ALTERNATIVE 1

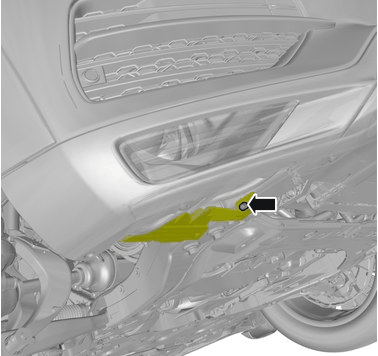

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Ensure that the cable/cables are not damaged.

Remove the screw.

Remove the marked part.

On both sides.

Torque: M6, 10Nm

ALTERNATIVE 2

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Ensure that the cable/cables are not damaged.

Remove the screw.

Remove the marked part.

On both sides.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that no components catch.

Remove the part carefully

Lower the component somewhat.

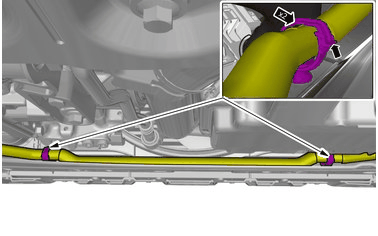

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

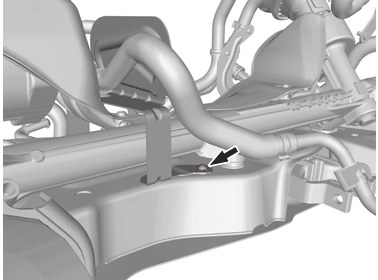

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: M6, 10Nm

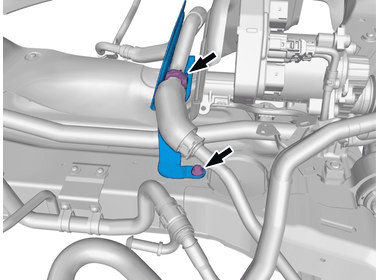

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Loosen the clip.

Remove the marked part.

Torque: M8, 24Nm

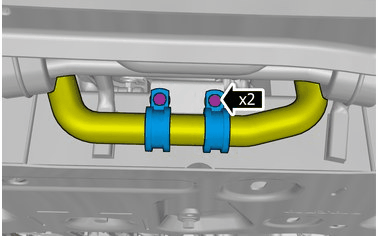

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.

Torque: M5, 5Nm

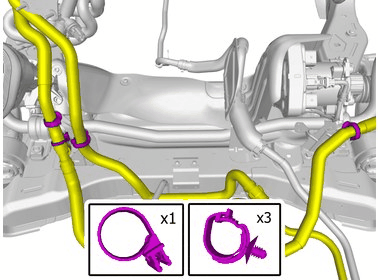

Courtesy of VOLVO CARS CORPORATION

Disconnect the connectors.

Remove the cable harness clips.

VEHICLES WITH AIR SUSPENSION

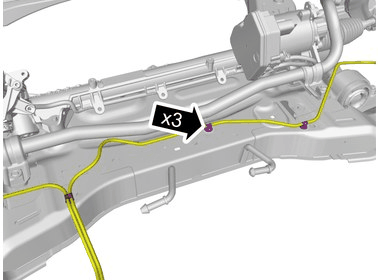

Courtesy of VOLVO CARS CORPORATION

Remove the cable harness clips.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that no components catch.

Lower to suitable height.
