Engine Pad Left [2018-2019, B4204T28, TG-81SC | 2020, B4204T28; B4204T39, TG-81SD]: Removal

Remove Inverter Generator Module (IGM), refer to: INVERTER GENERATOR MODULE

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 999 7523 , Special Tool: 999 5460 , Special Tool: 999 7537  and Special Tool: 999 5186

Courtesy of VOLVO CARS CORPORATION

Use:  Marker pen

Courtesy of VOLVO CARS CORPORATION

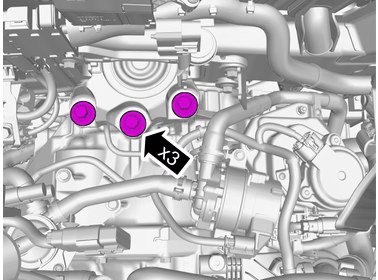

Remove the screws.

Torque:  Engine pad bracket, to Transmission, 110Nm

Courtesy of VOLVO CARS CORPORATION

Lower the engine.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.

Torque:  Engine pad to frame member, 60Nm
