Cylinder Block, Measurement [2016-2020, B4204T23; B4204T27; B4204T28 | 2020, B4204T39]: Reconditioning

CAUTION:

Make sure that the area around the component is clean and free of foreign material.

NOTE:

If the specified value is exceeded, a new component must be installed.

See information about specifications, refer to: ENGINE

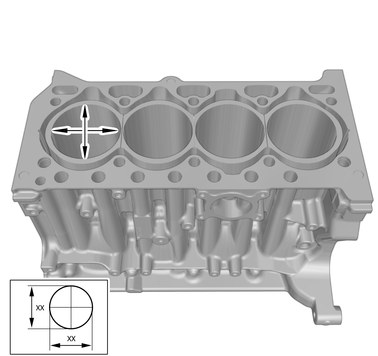

GLL1019609Courtesy of VOLVO CARS CORPORATION

Use:  Hole indicator

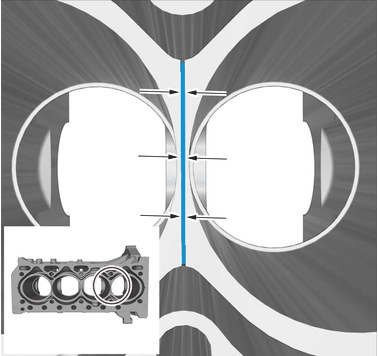

GLL1014364Courtesy of VOLVO CARS CORPORATION

Use:  Feeler gauge
