Crank Mechanism, Dismantling [2016-2020, B4204T23; B4204T27 | 2017-2020, B4204T28 | 2020, B4204T39]: Removal

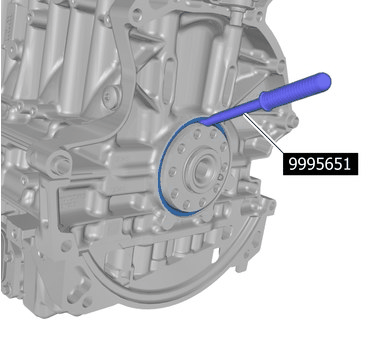

GLL1034552

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

CAUTION:

Take extra care not to damage the mating faces.

Refer to: Special Tool: 999 5651

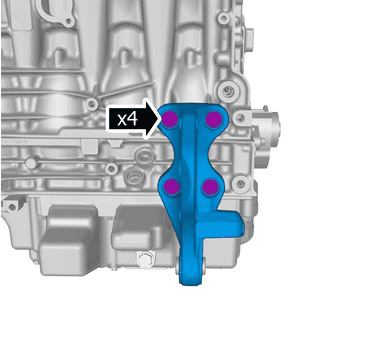

GLL1028096

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.

GLL1004804

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 999 7493

GLL1018620

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 999 7493

Remove the marked part.

GLL1025476

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

Remove the screws.

Remove the marked part.

GLL1035749

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

Remove the screws.

Remove the marked part.

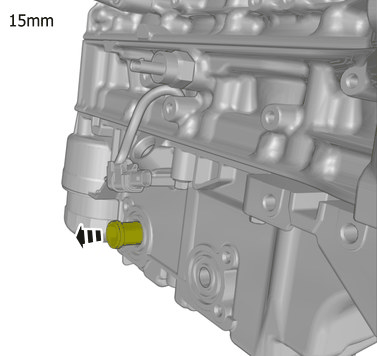

GLL1004456

Courtesy of VOLVO CARS CORPORATION

GLL1041647

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

Refer to: Special Tool: 999 7499

Remove the marked part.

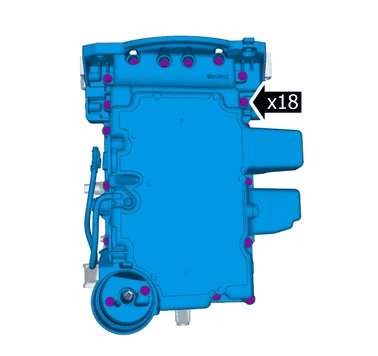

GLL1021592

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

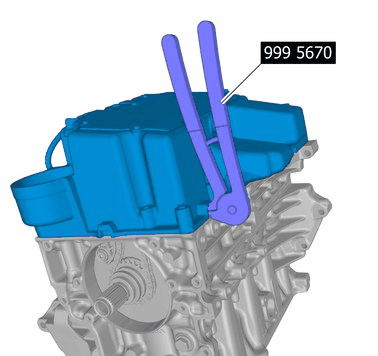

GLL1031475

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 999 5670

Remove the marked part.

GLL179798

Courtesy of VOLVO CARS CORPORATION

NOTE:

Only use moderate force.

Use: Pin 3 mm

GLL1037692

Courtesy of VOLVO CARS CORPORATION

Remove the screws.
Remove the marked part.

GLL1036954

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Fold marked part aside.

GLL1039284

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

GLL1015056

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
Fold marked part aside.

GLL1005506

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Remove the marked part.

GLL1004714

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.

GLL1038436

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the components.

NOTE:

Note the position of the component before removal.

Remove the screws.

Remove the marked part.

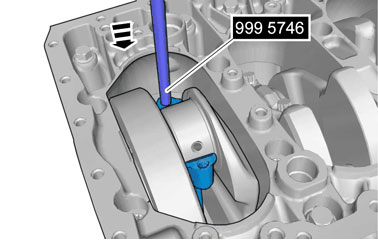

GLL174718

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the components.

Refer to: Special Tool: 999 5746

Remove the marked part.

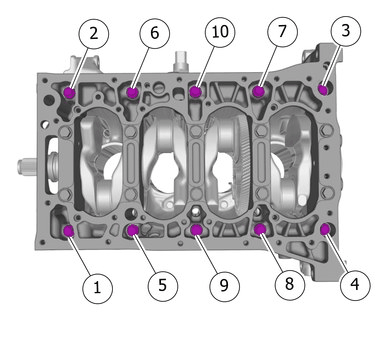

GLL1010297

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure to follow the sequence indicated.

Remove the screws.

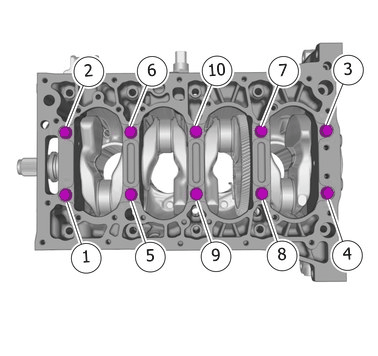

GLL1019718

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure to follow the sequence indicated.

Remove the screws.

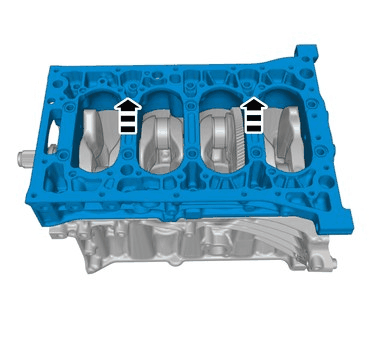

GLL1034821

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to damage the mating faces.

CAUTION:

Take extra care when handling the components.

NOTE:

Only use moderate force.

Remove the marked part.

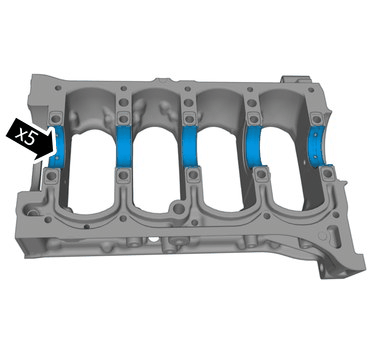

GLL1006745

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of each component before removal.

Remove the marked part.

GLL1012892

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the component.

Remove the marked part.

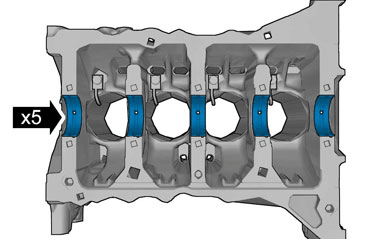

GLL170665

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.

Remove the marked part.

GLL1039196

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.
