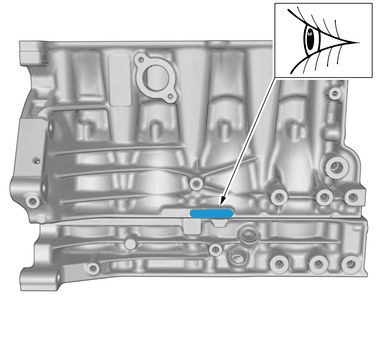

Crank Mechanism, Assembling [2016-2020, B4204T23; B4204T27 | 2016-2020, B4204T28 | 2020, B4204T39]: Marking

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the classification of the components correspond with each other.

See information about engine, refer to: ENGINE

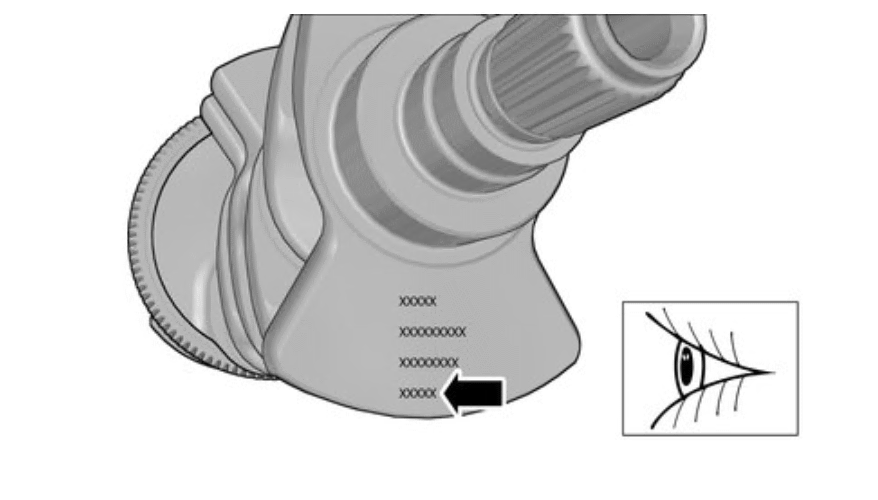

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the classification of the components correspond with each other.

See information about engine, refer to: ENGINE

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the classification of the components correspond with each other.

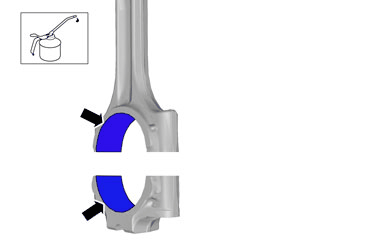

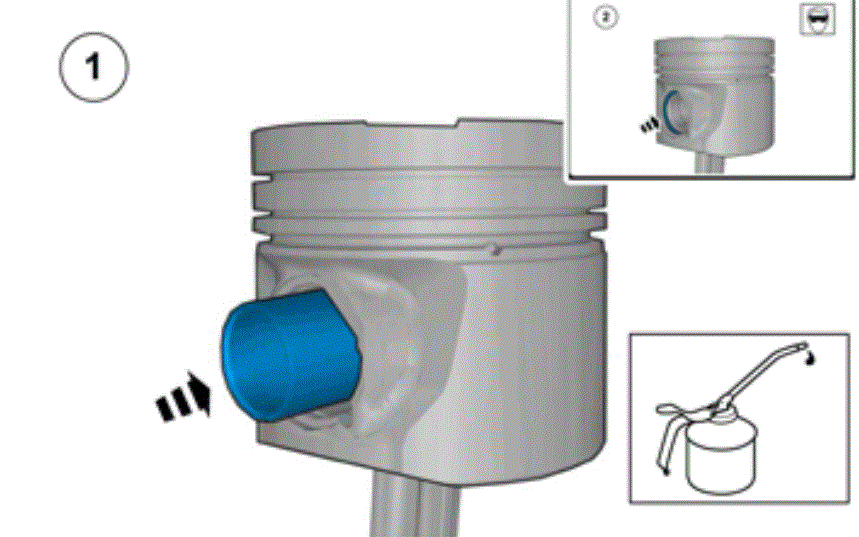

Courtesy of VOLVO CARS CORPORATION

Use: Engine oil,

Install the marked component.

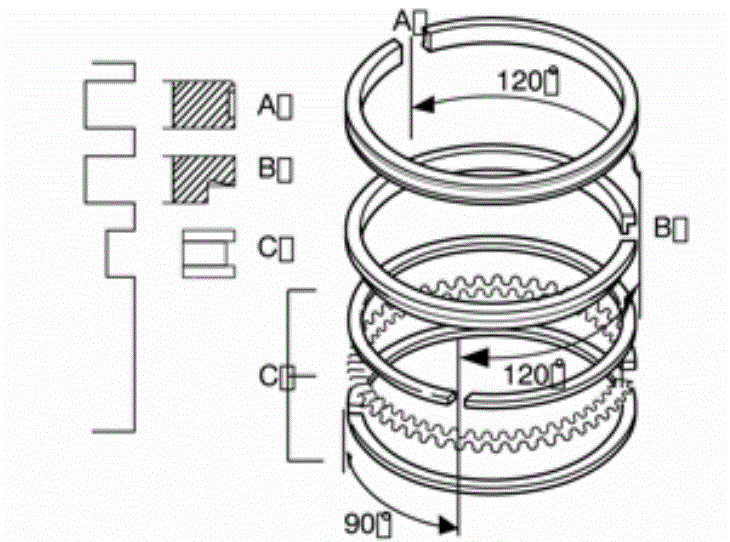

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the piston rings can be easily rotated by hand in the piston ring grooves.

NOTE:

Text or marking on piston ring A must be face up.

NOTE:

The piston rings must not be expanded more than necessary.

Use: Piston ring pliers

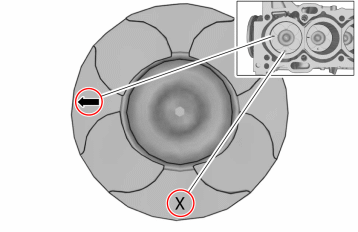

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the component is positioned correctly.

CAUTION:

Make sure that the mating faces are clean and free of foreign material.

Use: Engine oil,

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the components.

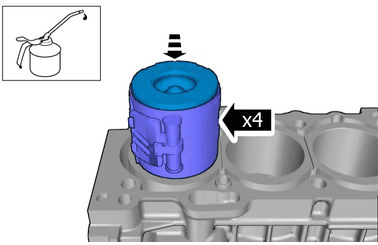

Use: Engine oil,

Use: Piston ring compressor

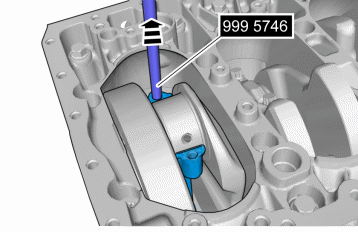

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the components.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the components.

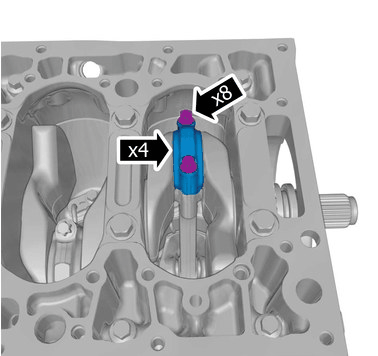

Install the marked component.

Tighten the bolts.

Torque:Cap connecting rod,
