Crank Mechanism, Assembling [2016-2020, B4204T23; B4204T27 | 2016-2020, B4204T28 | 2020, B4204T39]: Installation

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Tighten the bolts.

Torque: M7, 17Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the mating faces are clean and free of foreign material.

CAUTION:

Take extra care not to damage the mating faces.

Use: Abrasive cloth, 9511024
Use: Isopropanol,

Courtesy of VOLVO CARS CORPORATION

CAUTION:

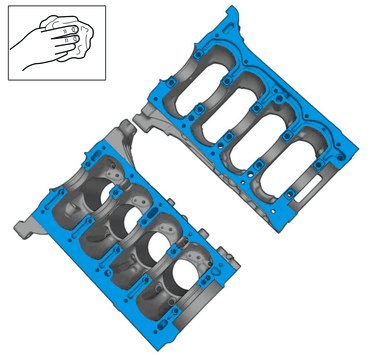

Make sure that the mating faces are clean and free of foreign material.

Use: Isopropanol,

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

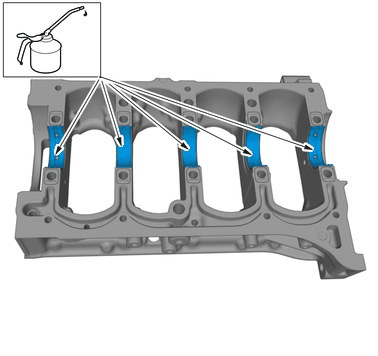

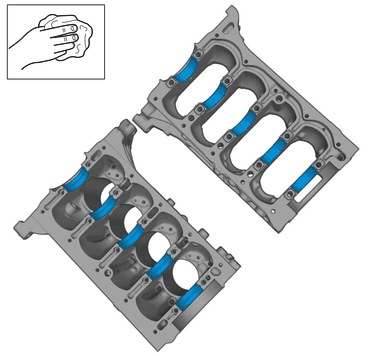

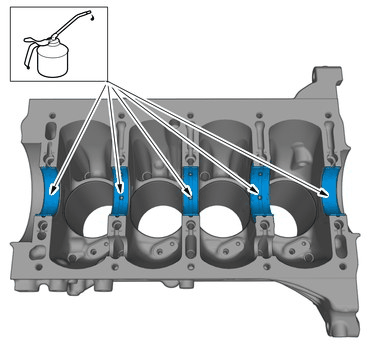

Use: Engine oil,

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

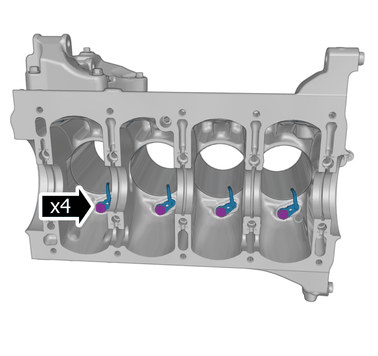

Use: Engine oil,

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the component.

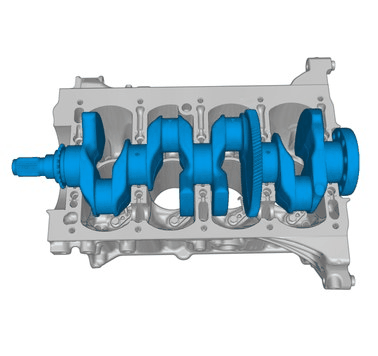

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

NOTE:

The component must be installed within 5 minutes of applying the sealant.

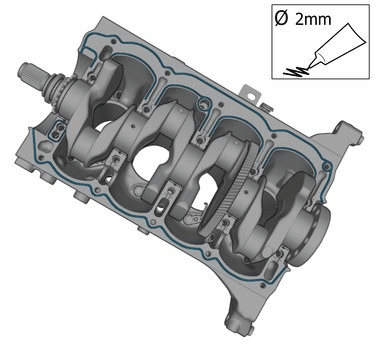

Use: Chemical gasket, 1161771

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that equal pressure is applied to the full length of the component.

NOTE:

The component must be installed within 5 minutes of applying the sealant.

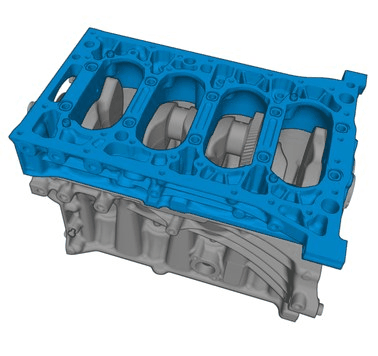

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

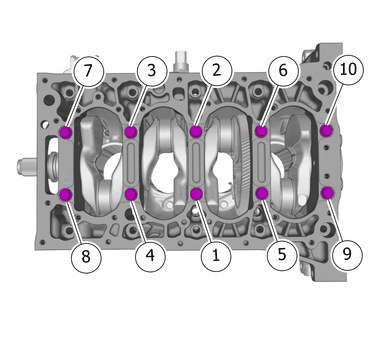

NOTE:

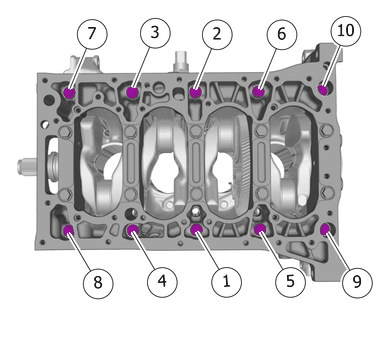

Make sure to follow the sequence indicated.

Install the screws.

Torque: Intermediate section for engine block step 1, 20Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure to follow the sequence indicated.

Torque: Intermediate section for engine block step 2, 40Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure to follow the sequence indicated.

Install the screws.

Torque: Intermediate section for engine block step 3, 25Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure to follow the sequence indicated.

Torque: Intermediate section for engine block step 4, 90Degree

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the area around the component is clean and free of foreign material.

Use: Isopropanol,

Courtesy of VOLVO CARS CORPORATION

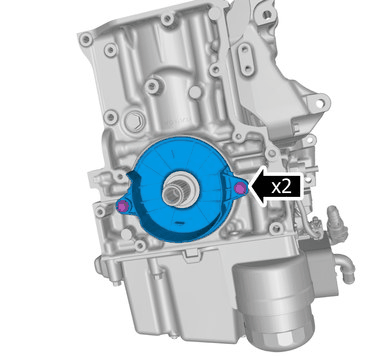

Install the marked component.

Install the screw.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

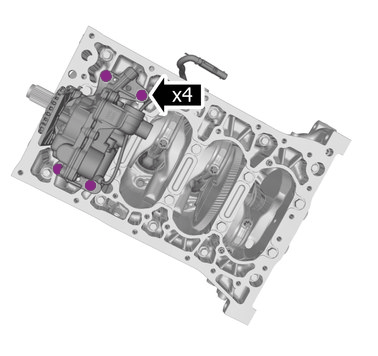

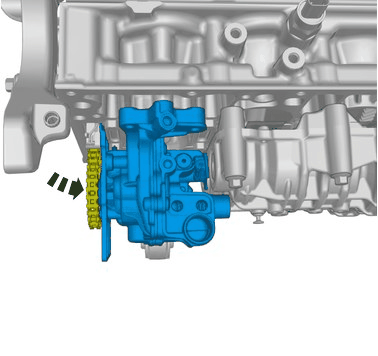

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M7, 17Nm

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 999 7532

Courtesy of VOLVO CARS CORPORATION

Use: Engine oil,

Courtesy of VOLVO CARS CORPORATION

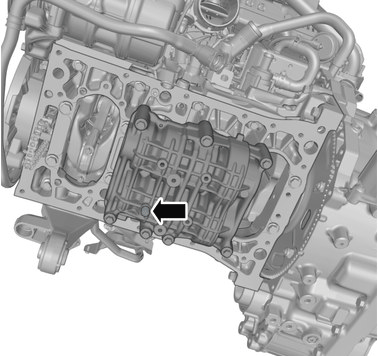

Install the marked component.

Install the screws.

Torque: M6, 10Nm

Remove the Special Tool.

Courtesy of VOLVO CARS CORPORATION

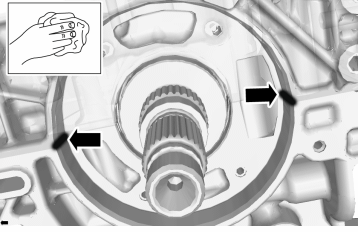

Use: Plastic mallet

Courtesy of VOLVO CARS CORPORATION

WARNING:

Make sure that new bolts are installed.

Install the marked component.

Tighten the bolts.

Use hands only.

Courtesy of VOLVO CARS CORPORATION

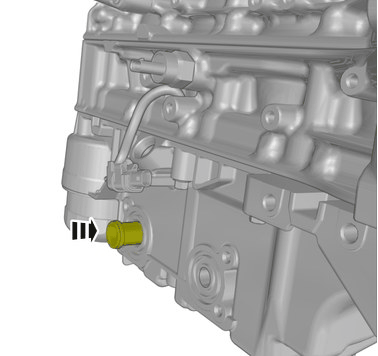

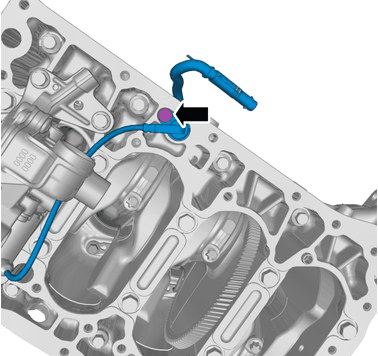

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Place the component where indicated in the graphic.

Use: Screw

Torque: M7, 17Nm

Refer to: Special Tool: 999 7432

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure to zero the dial indicator gauge before each measurement.

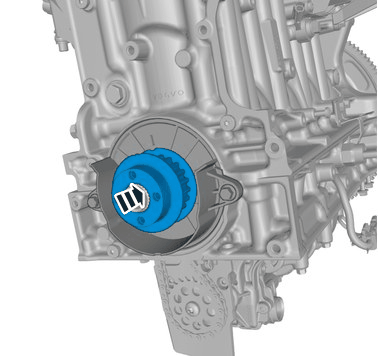

NOTE:

Make sure that the component reaches its end position.

Use: Plastic mallet

Refer to: Special Tool: 999 9696 , and Special Tool: 981 3134

Courtesy of VOLVO CARS CORPORATION

Use: Plastic mallet

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that new bolts are installed.

NOTE:

Make sure to follow the sequence indicated.

Tighten the bolts.

Torque:Balance shaft assembly, to Cylinder block

Stage 1: 8Nm
Stage 2: 210 °

Courtesy of VOLVO CARS CORPORATION

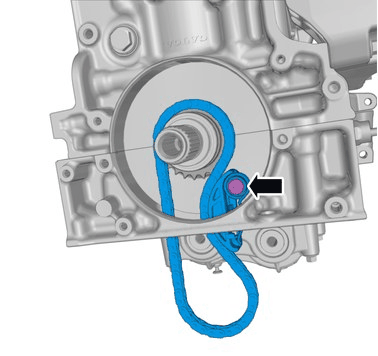

Install the marked component.

Install the screw.

Torque: M7, 17Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the mating faces are clean and free of foreign material.

NOTE:

The component must be installed within 5 minutes of applying the sealant.

Use: Abrasive cloth, 9511024

Use: Isopropanol,

Use: Chemical gasket, 1161771

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure to follow the sequence indicated.

Install the marked component.

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

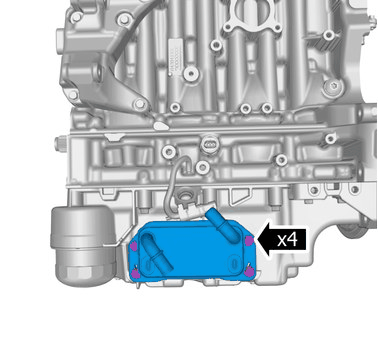

Install the marked component.

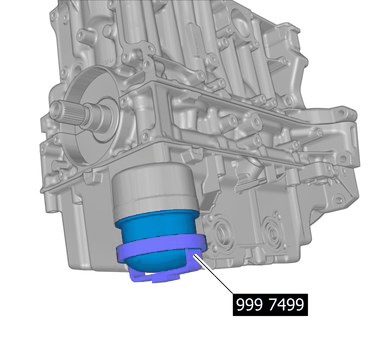

Refer to: Special Tool: 999 7499

Torque: Oil filter, 25Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the mating faces are clean and free of foreign material.

Install the marked component.

Install the screws.

Torque: M7, 17Nm
