Crank Mechanism, Assembling [2016-2020, B4204T23; B4204T27 | 2016-2020, B4204T28 | 2020, B4204T39]: Check

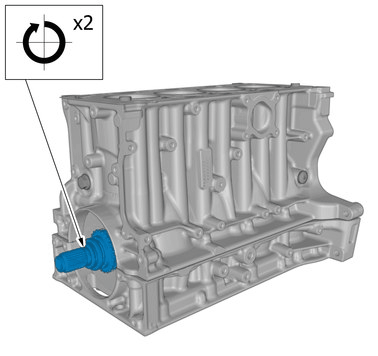

GLL1016781Courtesy of VOLVO CARS CORPORATION

Turn the engine



GLL1016781Courtesy of VOLVO CARS CORPORATION

Turn the engine



GLL1001961Courtesy of VOLVO CARS CORPORATION
CAUTION:

Make sure that the component is positioned correctly.

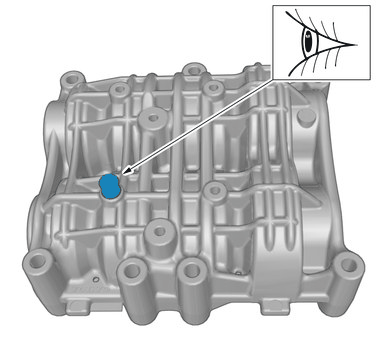

GLL1026120Courtesy of VOLVO CARS CORPORATION
CAUTION:

Make sure that the component is positioned correctly.

Install the marked component.
