Starter Motor [2016-2020, B4204T23; B4204T27]: Removal

Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY

Perform cooling system draining, charging and bleeding, refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING

Courtesy of VOLVO CARS CORPORATION

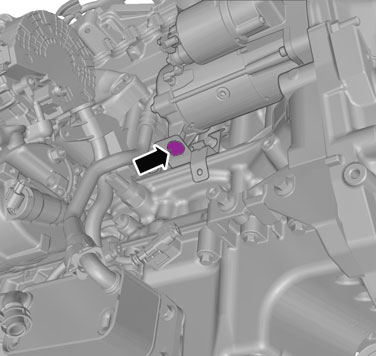

Remove the screw.

Torque:  M6, 10Nm

Remove intake manifold, refer to: INDUCTION PIPE

Courtesy of VOLVO CARS CORPORATION

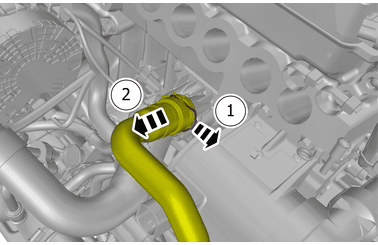

1. Remove the clip.
2. Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

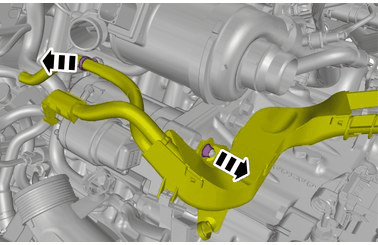

1. Remove the clip.
2. Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

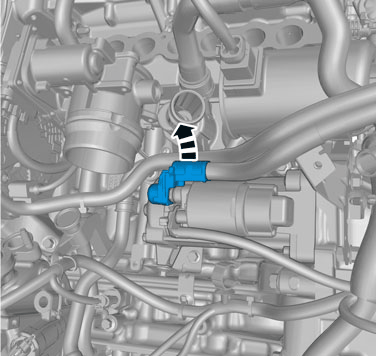

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

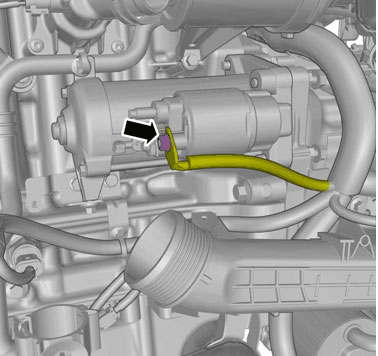

Remove the nut.

Torque:  Starter motor B+ terminal, 11Nm

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

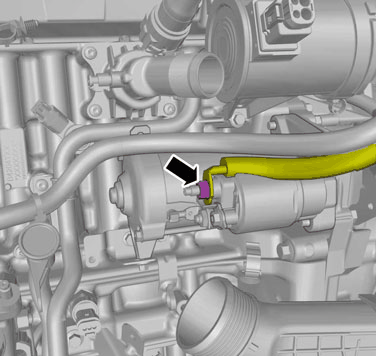

Remove the nut.

Torque:  Start impulse lead, 6.5Nm

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Torque:  M8, 24Nm

Remove the nut.

Loosen the clip.

Courtesy of VOLVO CARS CORPORATION

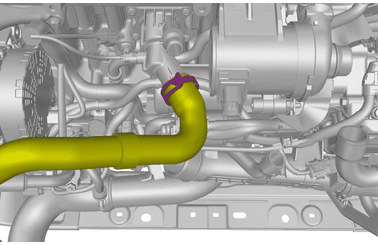

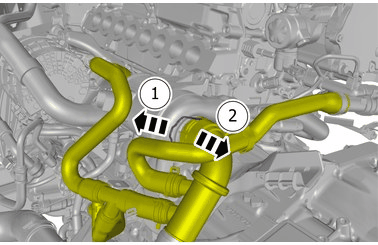

Loosen the hose clamp.

Courtesy of VOLVO CARS CORPORATION

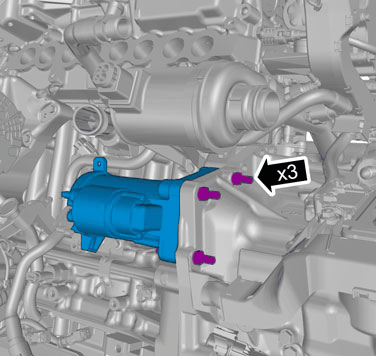

Torque:  M10, 50Nm

Remove the screws.
