Fuse Box, Engine Service Mode [2016-2019 | 2020, B4204T23; B4204T27 | 2020, B4204T28 | 2020, B4204T39]: Removal

Courtesy of VOLVO CARS CORPORATION

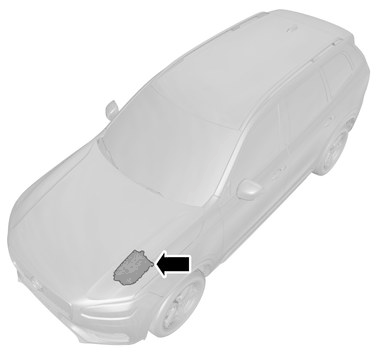

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Courtesy of VOLVO CARS CORPORATION

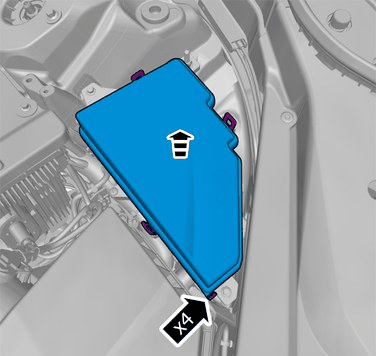

Release the locks.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

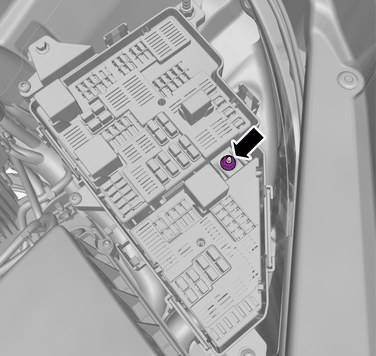

Remove the nut.

Torque:  M6, 10Nm

Remove the air filter housing, refer to: AIR CLEANER HOUSING

Remove the left front wheel, refer to: WHEELS

Courtesy of VOLVO CARS CORPORATION

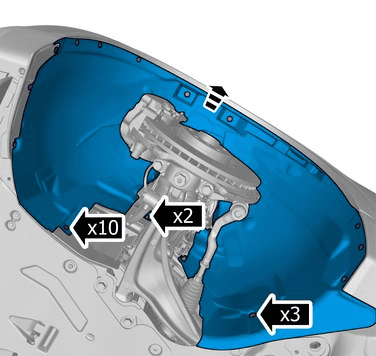

Remove the fasteners.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Loosen the clip.

Remove the nut.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Release the locks.

Loosen the marked detail/details.

Courtesy of VOLVO CARS CORPORATION

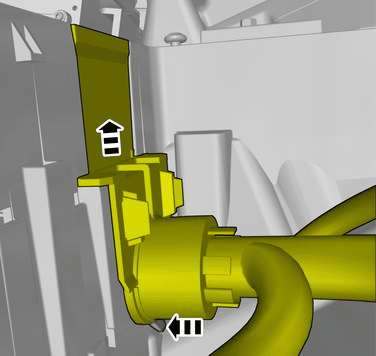

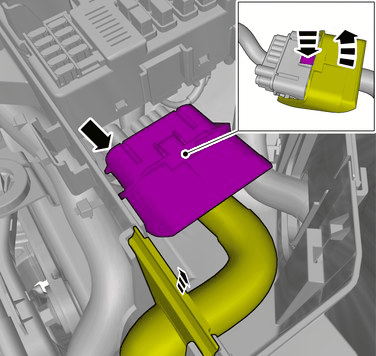

Release the lock.

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

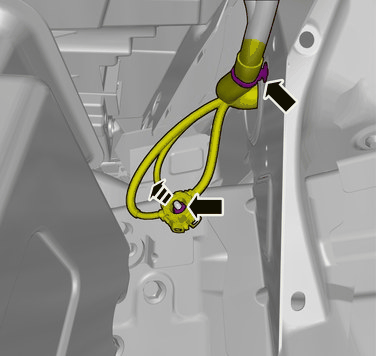

Loosen the wiring harness or move it to the side.

Courtesy of VOLVO CARS CORPORATION

Remove the fasteners.

Courtesy of VOLVO CARS CORPORATION

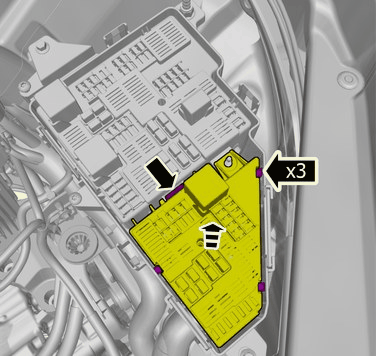

Release the locks.

Loosen the marked detail/details.

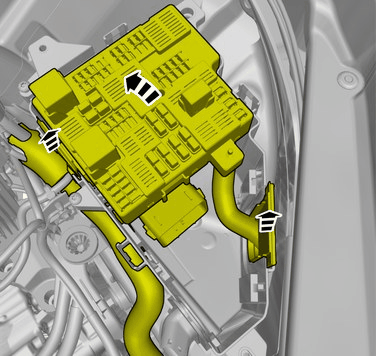

Courtesy of VOLVO CARS CORPORATION

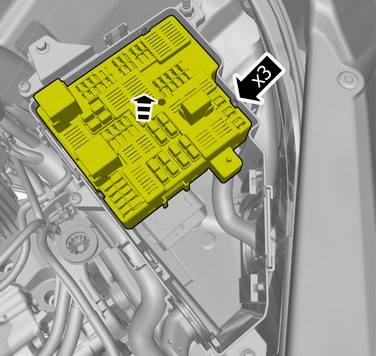

Release the lock.

Loosen the marked detail/details.

Courtesy of VOLVO CARS CORPORATION

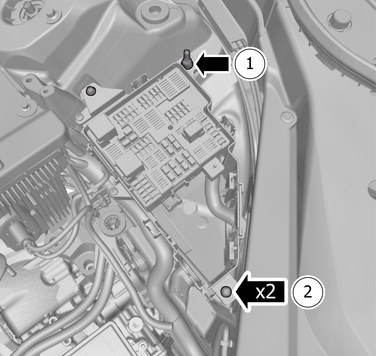

Detach the following items:

1. Remove the screw.

   Torque:  M8, 24Nm

2. Remove the screws.

   Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

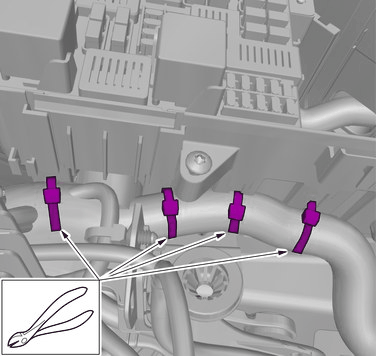

Loosen the wiring harness or move it to the side.

Courtesy of VOLVO CARS CORPORATION

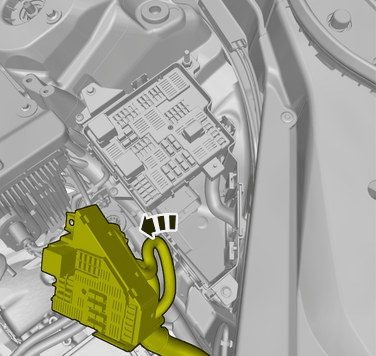

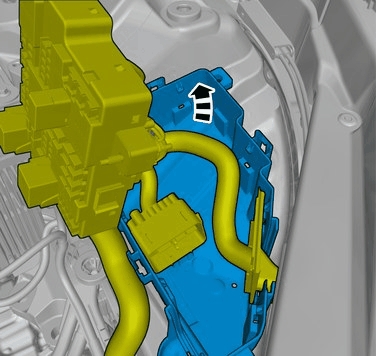

Remove the part carefully

Remove the marked part.
