Instrument Panel Lower [2016-2019]: Removal

APPLIES TO THE DRIVER'S SIDE

Courtesy of VOLVO CARS CORPORATION

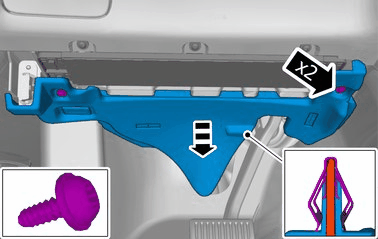

Remove the screws.

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

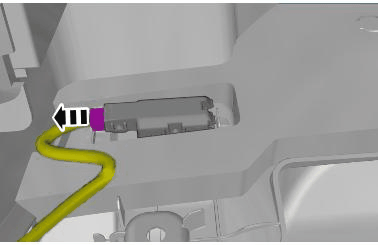

Disconnect the connector.

APPLIES TO THE PASSENGER SIDE

Courtesy of VOLVO CARS CORPORATION

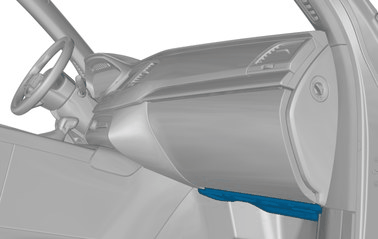

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

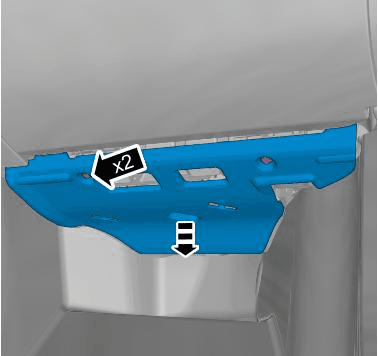

Remove the screws.

Remove the panel.
