Inflatable Curtain [2016-2020]: Installation

NOTE:

Install all the bolts finger tight before final tightening.

Courtesy of VOLVO CARS CORPORATION

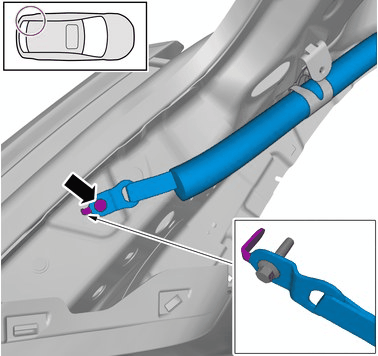

NOTE:

Make sure at the installation that the component has not become twisted.

Torque: Inflatable curtain to the body, 6Nm

Courtesy of VOLVO CARS CORPORATION

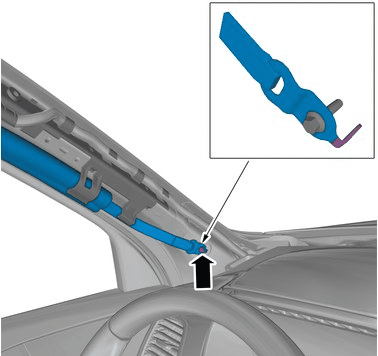

NOTE:

Make sure at the installation that the component has not become twisted.

Torque: Inflatable curtain to the body, 6Nm

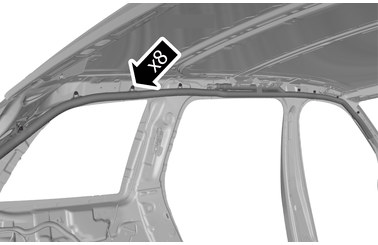

Install the screws.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure at the installation that the component has not become twisted.

Torque: Inflatable curtain to the body, 6Nm

Courtesy of VOLVO CARS CORPORATION

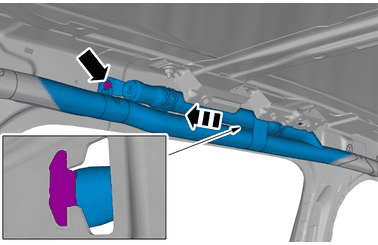

NOTE:

Make sure at the installation that the component has not become twisted.

Torque: Inflatable curtain to the body, 6Nm

To install, reverse the removal procedure.

Perform supplemental restraint system (SRS), post check, refer to: SUPPLEMENTARY RESTRAINT SYSTEM
