Fuse, Coolant Heater [2016-2020, B4204T28 | 2020, B4204T39]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Only specially trained technicians may work with the High voltage system.

Perform high voltage battery, disassembly, refer to: HIGH VOLTAGE BATTERY, DISMANTLING

Courtesy of VOLVO CARS CORPORATION

NOTE:

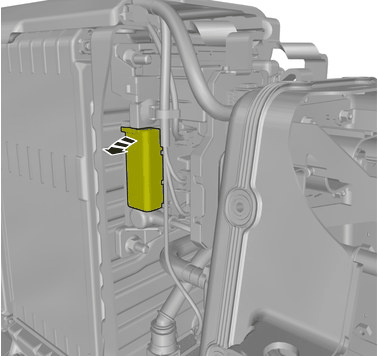

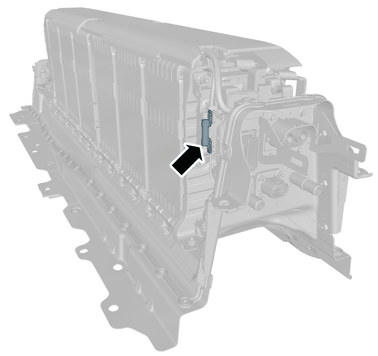

Orientation view

Courtesy of VOLVO CARS CORPORATION

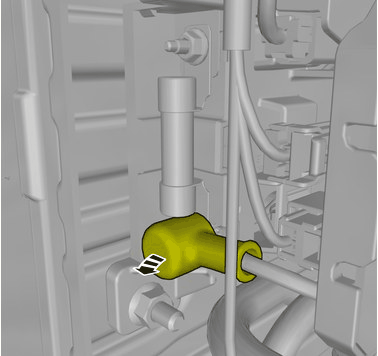

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Fold the insulation aside.

Courtesy of VOLVO CARS CORPORATION

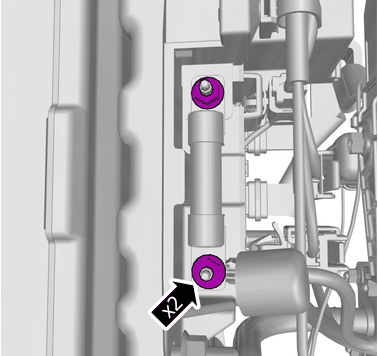

Remove the nuts.

Torque: Fuse to High Voltage Battery, 3Nm

Courtesy of VOLVO CARS CORPORATION

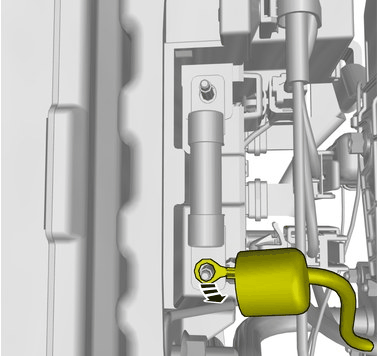

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

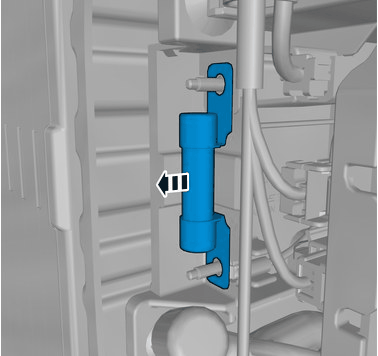

Remove the marked part.
