Battery [2016-2020, B4204T23; B4204T27 | 2016-2020, B4204T28 | 2020, B4204T39]: Removal

See the battery and charging safety information, refer to: SAFETY INFORMATION BATTERY AND CHARGING

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

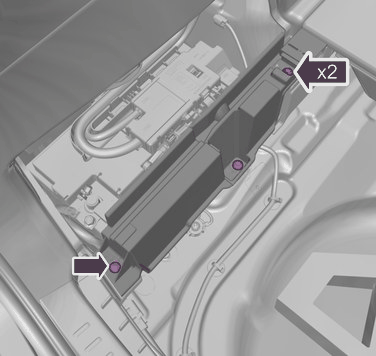

Remove the screws.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

Courtesy of VOLVO CARS CORPORATION

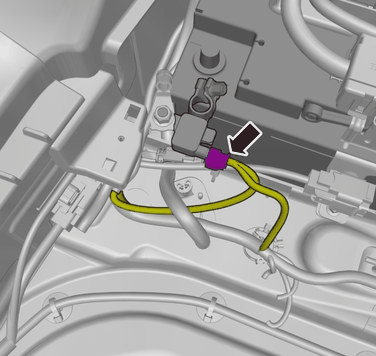

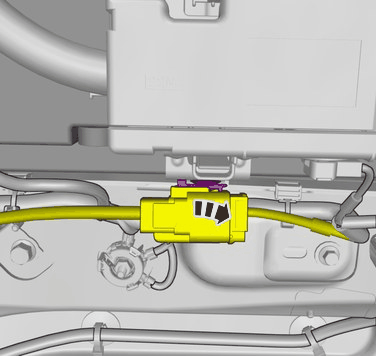

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

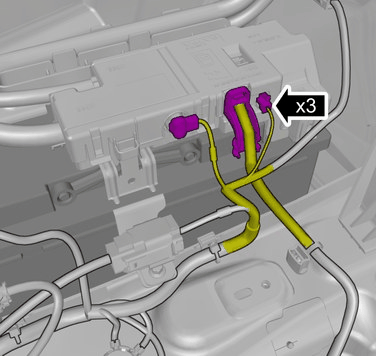

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

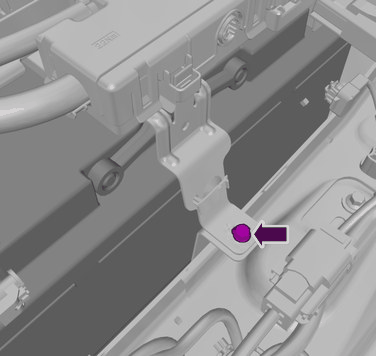

Remove the screw.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

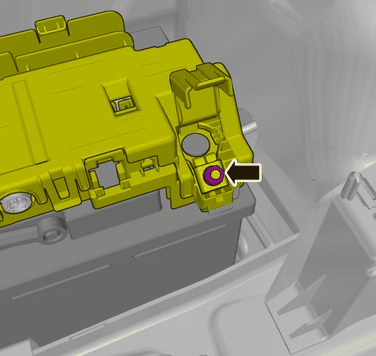

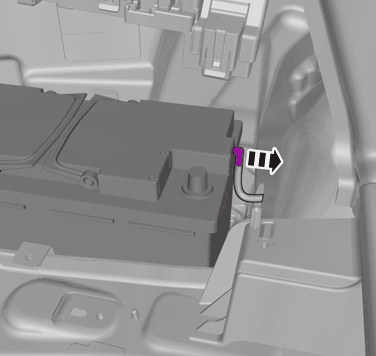

Loosen the nut.

Torque:  Battery cable for battery, 6Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

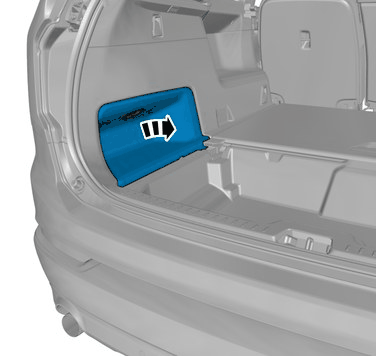

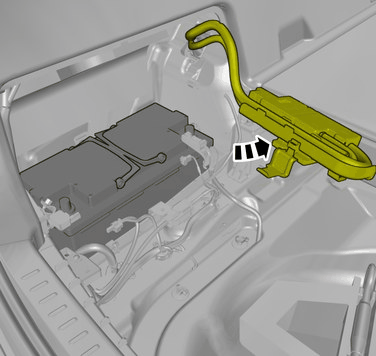

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Undo the hose from the connection.

Courtesy of VOLVO CARS CORPORATION

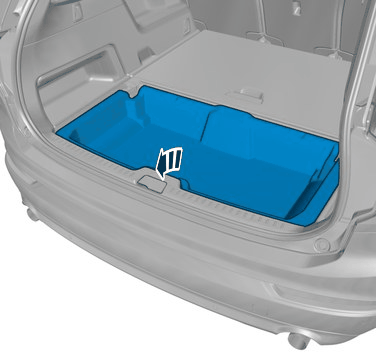

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION
