Battery Cable To The Starter Motor Control Solenoid. [2016-2020, B4204T23; B4204T27]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

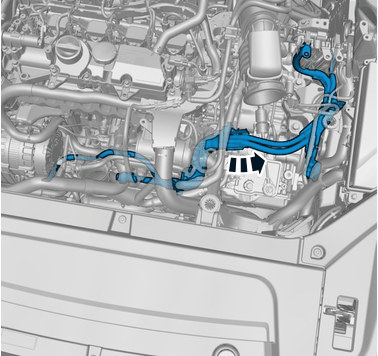

NOTE:

Orientation view

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Remove the following items:

air cleaner (ACL) housing, refer to: AIR CLEANER HOUSING
the intake manifold, refer to: INDUCTION PIPE
Support battery, refer to: SUPPORT BATTERY
Battery Control Switch Module BCSM, refer to: BATTERY CONTROL SWITCH MODULE BCSM

Courtesy of VOLVO CARS CORPORATION

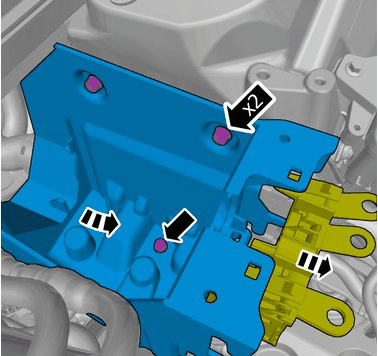

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

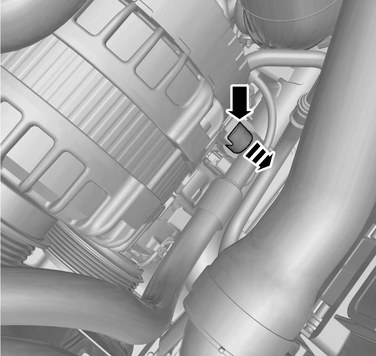

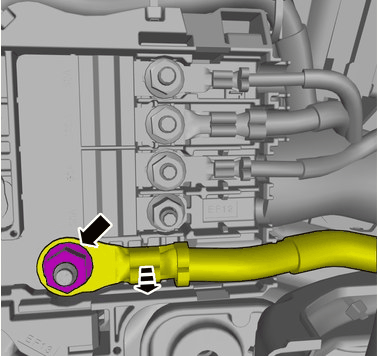

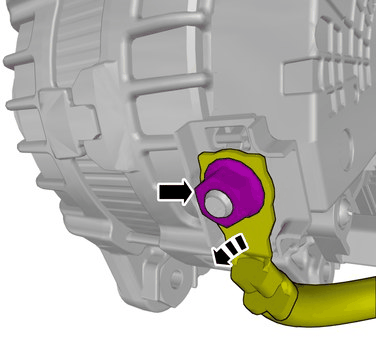

Remove the nut.

Torque: Generator B+ terminal, 15Nm

Courtesy of VOLVO CARS CORPORATION

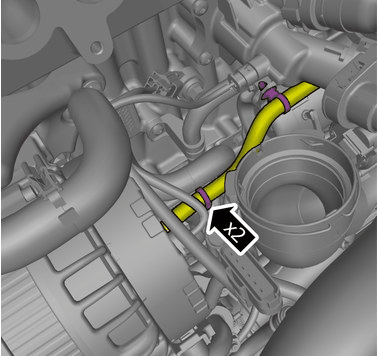

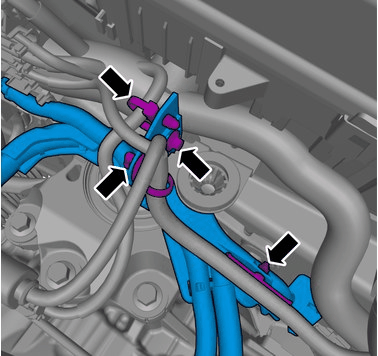

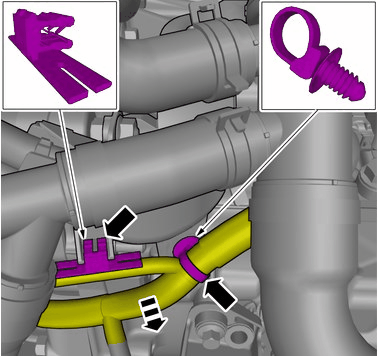

Loosen the clips.

Loosen the wiring harness or move it to the side.

Courtesy of VOLVO CARS CORPORATION

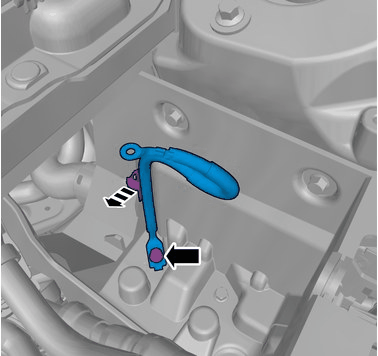

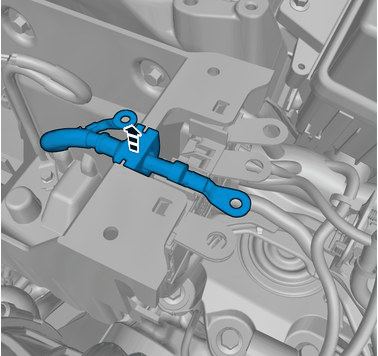

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

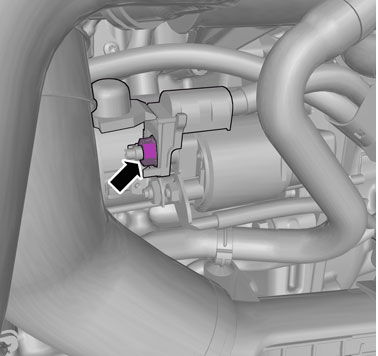

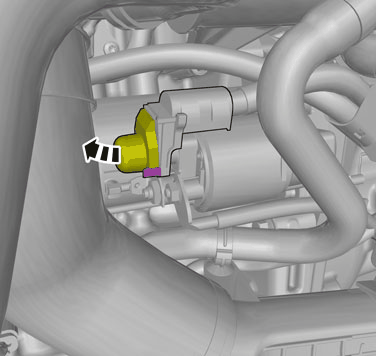

Remove the nut.

Torque: Starter motor B+ terminal, 11Nm

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

Loosen the wiring harness or move it to the side.

Courtesy of VOLVO CARS CORPORATION

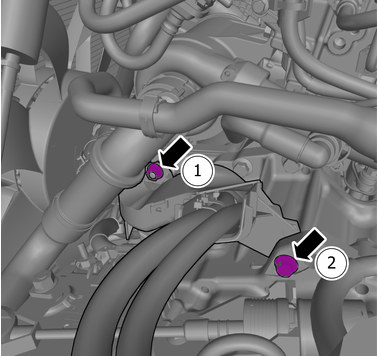

Remove the following items:

Remove the nut.
Torque: M8, 24Nm
Remove the screw.
Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

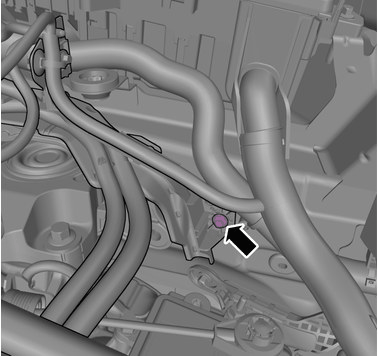

Remove the screw.

Torque: M5, 5Nm

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

CAUTION:

There are two separate torque specifications, note year range.

Torque: [2016-2017] Battery box, to Body, 13Nm
Torque: [2018-2020] Battery box, to Body, 7Nm

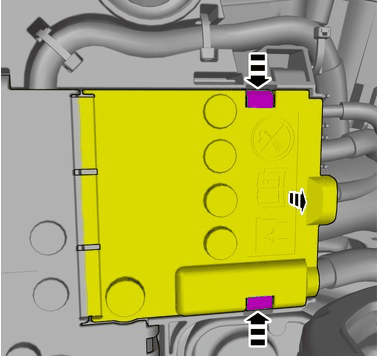

Loosen the clip.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

CAUTION:

There are two different torque specifications, not year ranges

Torque: [2016-2017] Battery box, to Body, 13Nm
Torque: [2018-2020] Battery box, to Body, 7Nm

Loosen the wiring harness or move it to the side.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

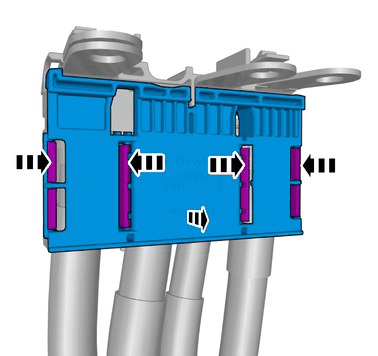

Release the locks.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Remove the nut.

Torque: M8, 24Nm

Loosen the wiring harness or move it to the side.

Courtesy of VOLVO CARS CORPORATION

Release the locks.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

Remove the screw.

Torque: M5, 5Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Note the routing of the lines and hoses.

Remove the marked part.
