Wiring Harness Supplemental Restraint System (SRS) [2016-2020]: Repair
Take extra care when handling supplemental restraint system (SRS) components.
Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING
See information about cable terminals surface treatment, refer to: CABLE TERMINALS SURFACE TREATMENT
See information about junction sleeve, refer to: JUNCTION SLEEVE

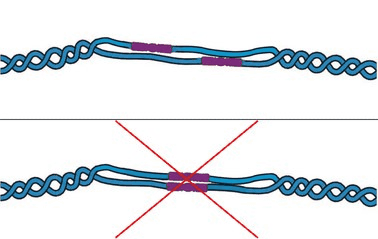

Only work on 1 cable at a time.

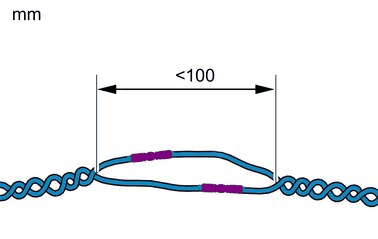

Max allowed "unpaired" length of twisted pair wires is 100 mm.
Make sure to place the component as the graphic shows.
Refer to: Special Tool: 951 2620
Make sure that the component is positioned correctly.

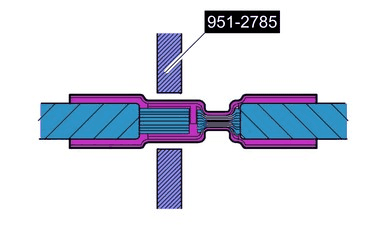

Refer to: Special Tool: 951 2785
Refer to: Special Tool: 951 2785
Make sure that the surrounding components are protected from heat.
Refer to: Special Tool: 951 2850 , Special Tool: 951 2851 , and Special Tool: 951 2851
