Front Lower Bushing In Rear Wheel Knuckle [2016-2020]: Installation

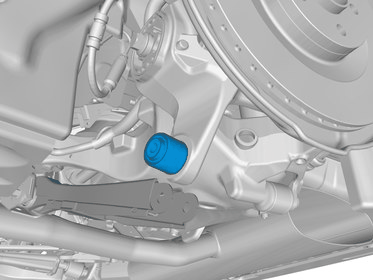

GLL1039845Courtesy of VOLVO CARS CORPORATION
NOTE:

Note the position.

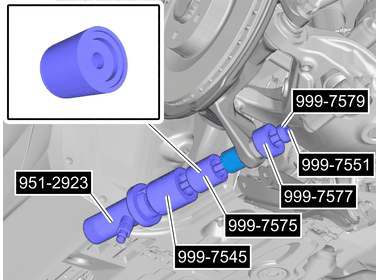

GLL1000896Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 951 2923 , Special Tool: 999 7545 , Special Tool: 999 7575 , Special Tool: 999 7577 , Special Tool: 999 7551 , and Special Tool: 999 7579

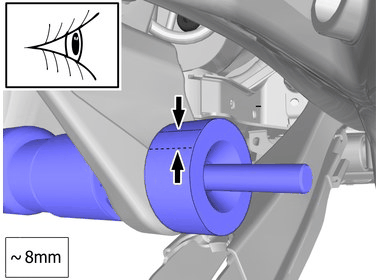

GLL1031932Courtesy of VOLVO CARS CORPORATION
CAUTION:

Note the placing of the tool.

To install, reverse the removal procedure.
