Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Remove relevant side rear wheel, refer to: WHEELS

VEHICLES WITH AIR SUSPENSION

Empty air springs according to: Diagnostics/ Components/ ECU / SUM / Diagnostic Sequences / Deflating and filling air springs and reservoir

ALL VEHICLES

Remove brake disc rear, refer to: REAR BRAKE DISC

Courtesy of VOLVO CARS CORPORATION

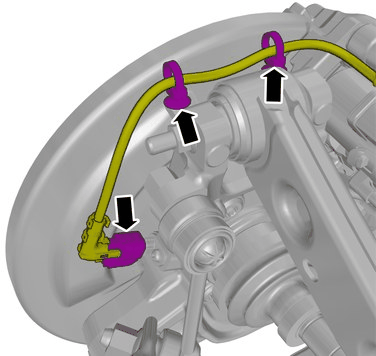

Disconnect the connector.

Remove the cable harness clips.

Courtesy of VOLVO CARS CORPORATION

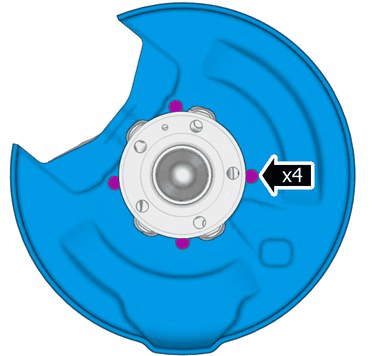

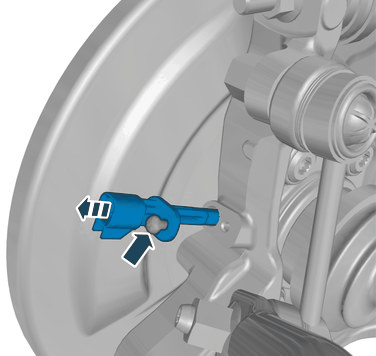

Remove the screw.

Remove the marked part.

Torque: RPM sensor for wheel spindle, 6Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

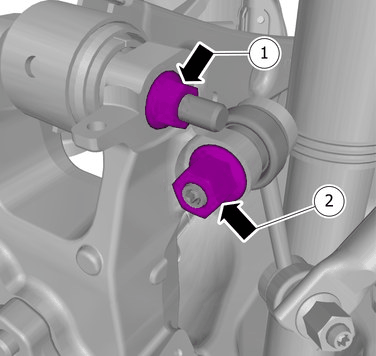

Remove the nuts.

Torque: Rear upper control arm to wheel knuckle, 60Nm
Torque: Rear stabilizer bar link, to Wheel knuckle, 80Nm

VEHICLES WITHOUT AIR SUSPENSION

Courtesy of VOLVO CARS CORPORATION

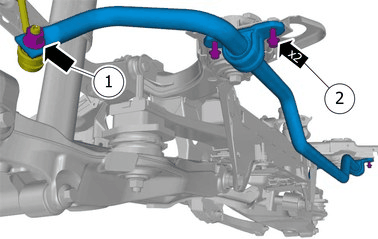

Remove the following items:

Torque: Rear stabilizer bar link to stabilizer bar, 80Nm
Torque: Anti-roll bar to rear sub-frame, 35Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Only use the specified special tool.

Refer to: Special Tool: 999 7560

Torque: Spring seat outer, to leafspring, 70Nm

Courtesy of VOLVO CARS CORPORATION

Assemble the following items:

Refer to: Special Tool: 951 2911
Refer to: Special Tool: 999 7560

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: Rear shock absorber top mount, to Body, 60Nm

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Tighten the bolts.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the special tool can move freely.

Place the component where indicated in the graphic.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Only tighten the nuts finger tight at this stage.

Install the nuts

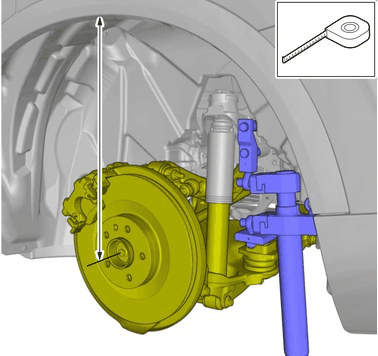

Ensure that the vehicle is adapted to normal status, refer to: NORMAL POSITION

Courtesy of VOLVO CARS CORPORATION

Adjust to the specified value.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that a new bolt is installed.

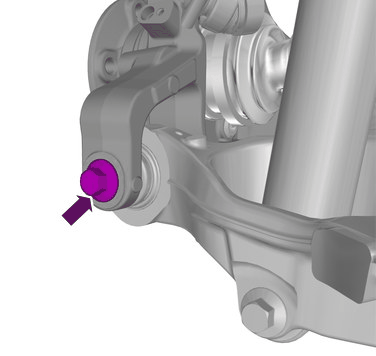

Remove the screw.

Torque:Lower control arm rear to wheel knuckle (rear mounting),

Stage 1: 90 Nm
Stage 2: 120 °

Courtesy of VOLVO CARS CORPORATION

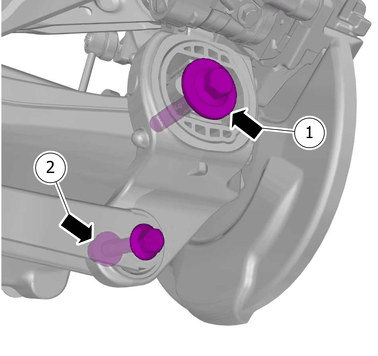

CAUTION:

Make sure that new bolts are installed.

Remove the screws.

Torque:Lower control arm rear to wheel knuckle (front mounting),
- Stage 1: 140Nm
- Stage 2: 90 °
Torque:Track rod, to Wheel knuckle,
- Stage 1: 90Nm
- Stage 2: 90 °

Courtesy of VOLVO CARS CORPORATION

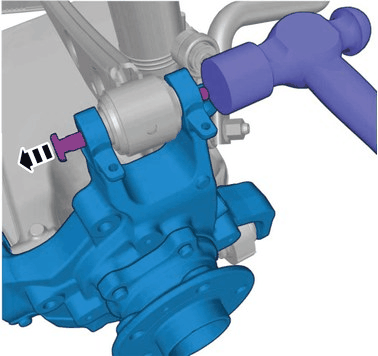

CAUTION:

Observe caution when carrying out this step.

CAUTION:

Make sure that a new bolt is installed.

Remove the marked part.

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

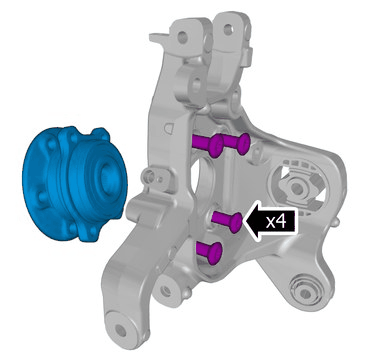

CAUTION:

Make sure that new bolts are installed.

Remove the screws.

Torque: Wheel bearing rear to wheel knuckle, 150Nm

INSTALLATION

To install, reverse the removal procedure.

VEHICLES WITH AIR SUSPENSION

NOTE:

Only tighten the nuts and bolts when the suspension is in the normal drive position.

Ensure that the vehicle is adapted to normal status, refer to: NORMAL POSITION

Fill air springs according to: Diagnostics/ Components/ ECU / SUM / Diagnostic Sequences / Deflating and filling air springs and reservoir
