Removal And Installation

REMOVAL

Remove wheel spindle, refer to: WHEEL KNUCKLE REAR

PREPARATION

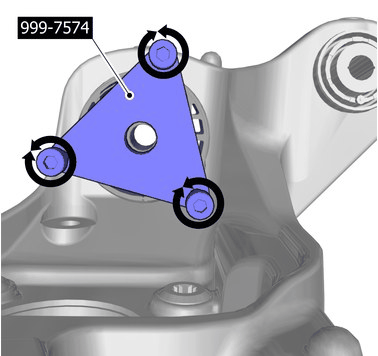

GLL1016826Courtesy of VOLVO CARS CORPORATION
CAUTION:

Note the placing of the tool.

NOTE:

Information in the graphic is valid for Installation procedure.

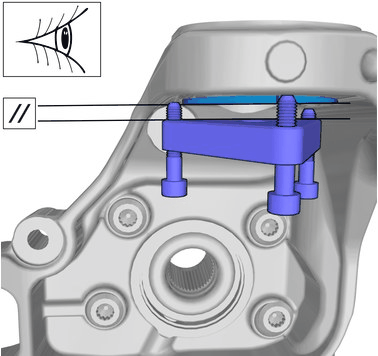

GLL1037140Courtesy of VOLVO CARS CORPORATION
NOTE:

Information in the graphic is valid for Installation procedure.

REMOVAL

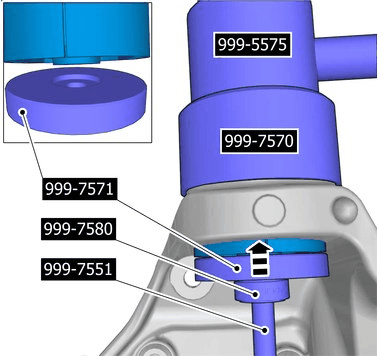

GLL1034394Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 999 5575 , Special Tool: 999 7570 , Special Tool: 999 7571 , Special Tool: 999 7551 , and Special Tool: 999 7580

INSTALLATION

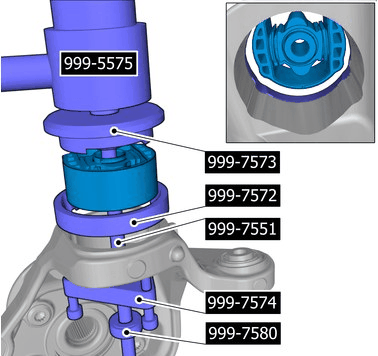

GLL1019021Courtesy of VOLVO CARS CORPORATION
NOTE:

The component can only be installed in 1 position.

Refer to: Special Tool: 999 5575 , Special Tool: 999 7573 , Special Tool: 999 7551 , Special Tool: 999 7574 , and Special Tool: 999 7580

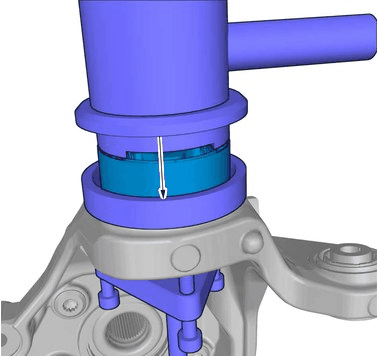

GLL1007415Courtesy of VOLVO CARS CORPORATION
CAUTION:

Observe caution when carrying out this step.

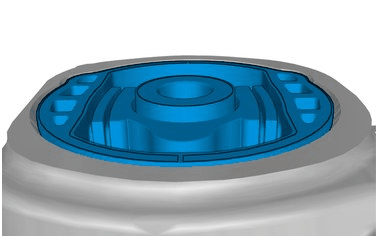

GLL1016258Courtesy of VOLVO CARS CORPORATION
CAUTION:

Make sure that the component is positioned correctly.

Install wheel spindle, refer to: WHEEL KNUCKLE REAR
