Sealing Ring, Driveshaft, Front Right [2016-2020, B4204T23, TG-81SC]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the right drive shaft, refer to: DRIVE SHAFT RIGHT

Courtesy of VOLVO CARS CORPORATION

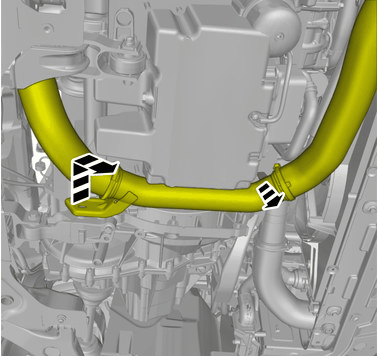

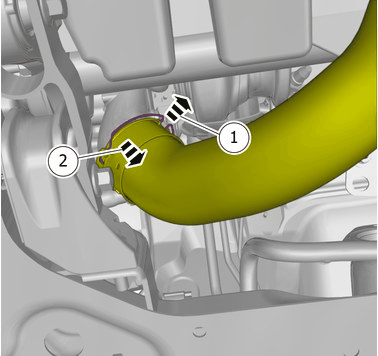

Release the catch.

Undo the hose from the connection.

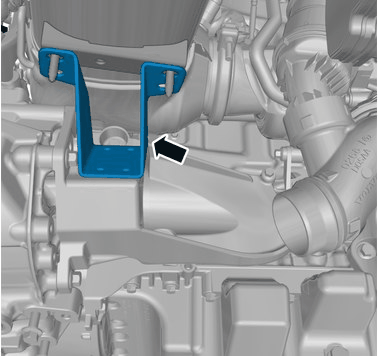

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Courtesy of VOLVO CARS CORPORATION

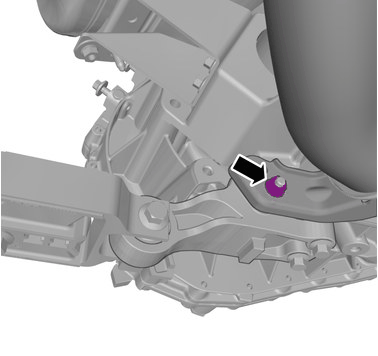

Remove the nut.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

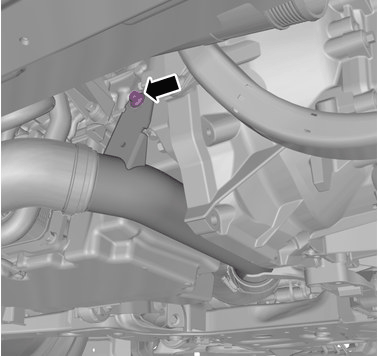

Remove the screw.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

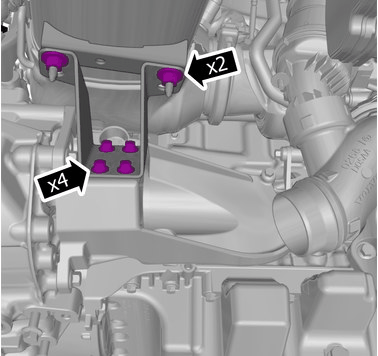

Remove the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Remove the nuts.

Remove the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that new components are installed.

Remove the screw.

Torque: Clamp catalytic converter, 20Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

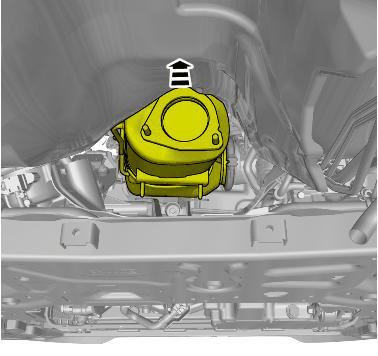

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

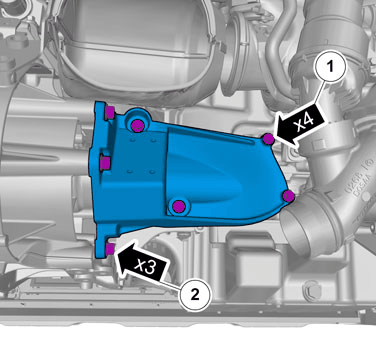

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

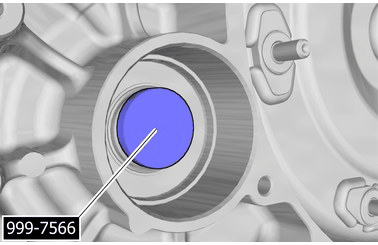

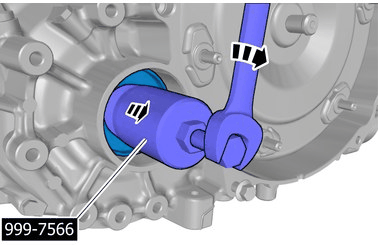

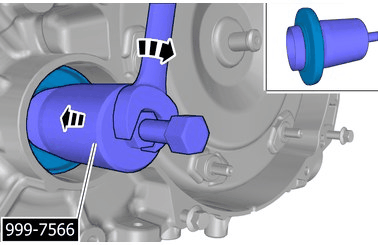

WARNING:

Be prepared to collect escaping fluid.
