Rear HALFSHAFT Seal [2020, B4204T23; B4204T27, TG-81SC AWD]: Removal

Remove drive axle rear, refer to: REAR DRIVE AXLE

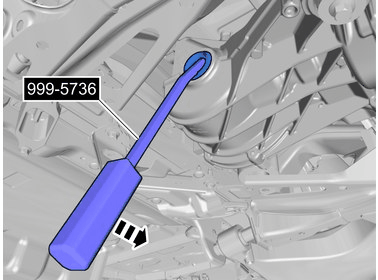

GLL1048205Courtesy of VOLVO CARS CORPORATION
WARNING:

Be prepared to collect escaping fluid.

Remove the marked part.

Refer to: Special Tool: 999 5736
