Rear Drive Axle [2016, B4204T28 | 2017-2019, B4204T28, TG-81SC | 2020, B4204T28; B4204T39, TG-81SD]: Installation

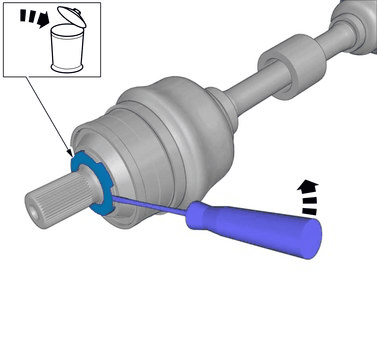

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that a new component is installed.

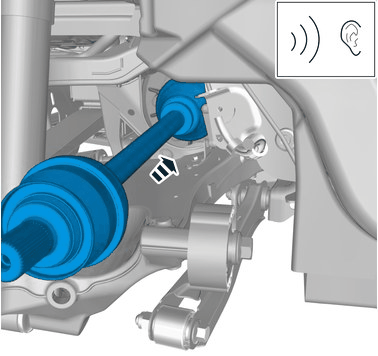

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to damage the seal.

NOTE:

A click confirms that the component is in the correct position.

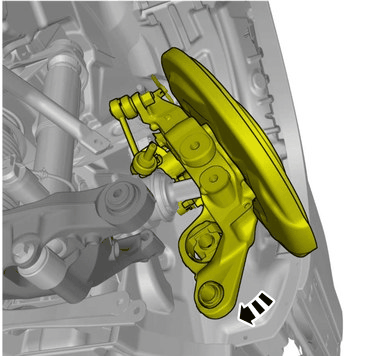

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

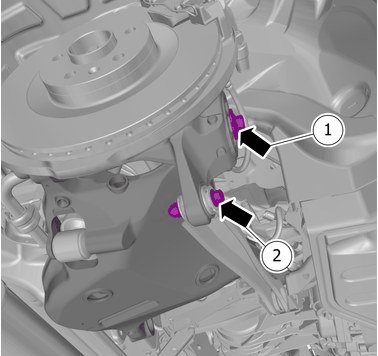

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that new bolts are installed.

CAUTION:

Make sure that a new nut is installed.

Install the screws.

Torque: Lower control arm rear to wheel knuckle (front mounting),
- Stage 1: 140 Nm
- Stage 2: 90 °
Torque: Track rod, to Wheel knuckle,
- Stage 1: 90 Nm
- Stage 2: 90 °

Ensure that the vehicle is adapted to normal status, refer to: NORMAL POSITION

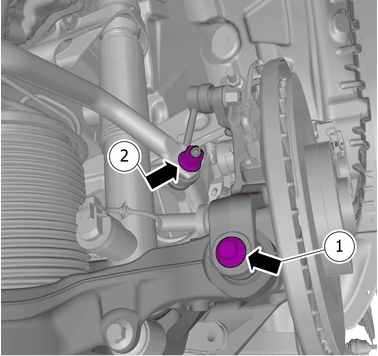

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that a new bolt is installed.

CAUTION:

Make sure that a new nut is installed.

Install the screw.

Install the nut.

Torque: Lower control arm rear to wheel knuckle (rear mounting),
- Stage 1: 90 Nm
- Stage 2: 120 °
Torque: Rear stabilizer bar link to stabilizer bar, 80Nm

To install, reverse the removal procedure.
