ERAD Transmission [2016-2019, B4204T28, TG-81SC | 2020, B4204T28; B4204T39, TG-81SD]: Removal

Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY

Courtesy of VOLVO CARS CORPORATION

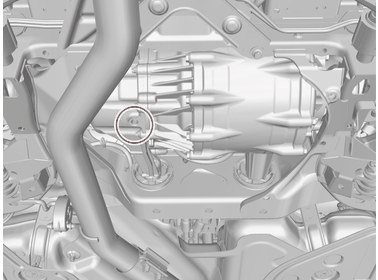

WARNING:

Be prepared to collect escaping fluid.

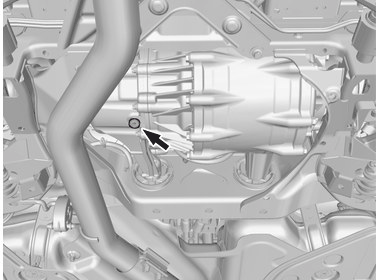

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The fluid must be allowed to escape until a continuous flow changes into single drops.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the component is clean and free of foreign material.

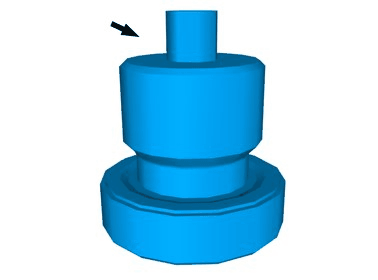

Remove the swarf.

Courtesy of VOLVO CARS CORPORATION

Install the screw.

Torque: ERAD Oil drain plug, 20Nm

Remove rear axle, electric erad, refer to: ELECTRIC REAR AXLE DRIVE ERAD

Courtesy of VOLVO CARS CORPORATION

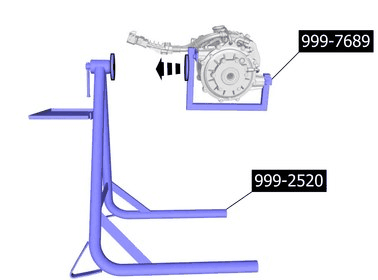

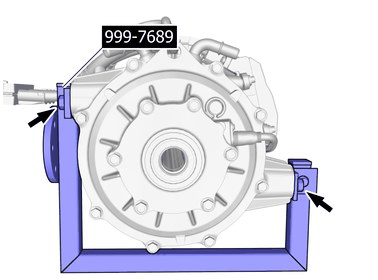

Refer to: Special Tool: 999 7689

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 999 2520

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Remove the cable harness clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

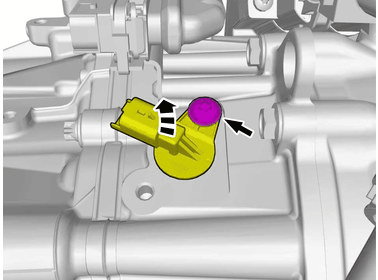

Remove the screw.

Lift the marked component up

Courtesy of VOLVO CARS CORPORATION

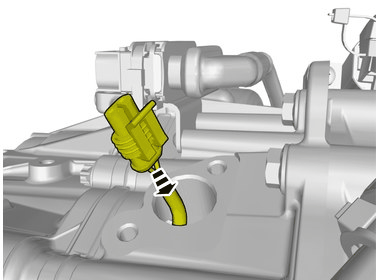

Disconnect the connector.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

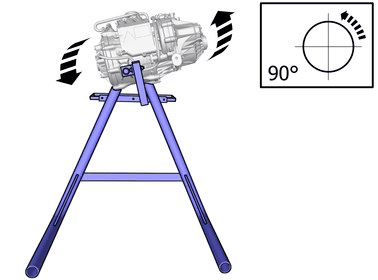

Turn the engine

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that locating studs remains in the timing gear casing.

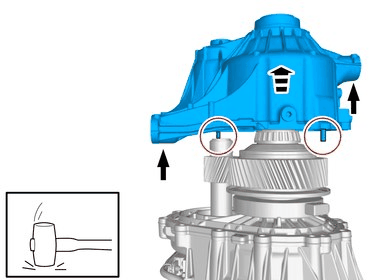

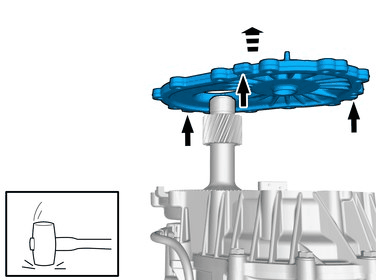

Remove the marked part.

Use: Plastic mallet

Courtesy of VOLVO CARS CORPORATION

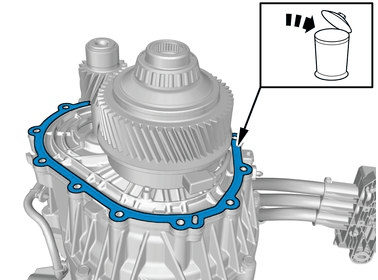

Old sealing.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the wiring harness does not catch.

NOTE:

Note the position of the component before removal.

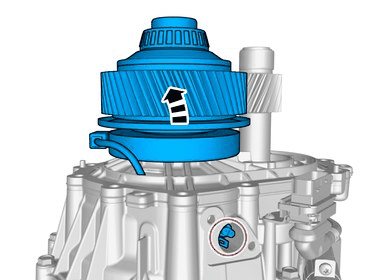

Remove the part carefully

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Use: Plastic mallet

Courtesy of VOLVO CARS CORPORATION

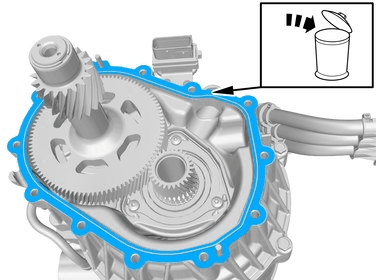

Old sealing.

Courtesy of VOLVO CARS CORPORATION

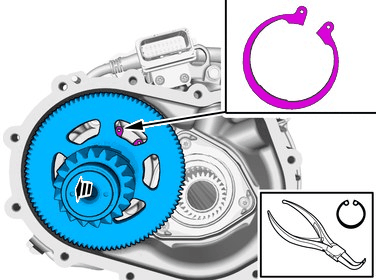

Release the lock.

Remove the marked part.

Use: Circlip pliers, internal

Courtesy of VOLVO CARS CORPORATION

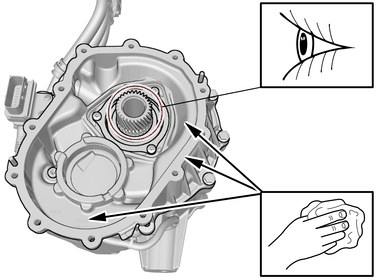

NOTE:

Check the component. if any damage is shown, the whole complete ERAD is to be exchanged.

NOTE:

Make sure that the component is clean and free of foreign material.
