Driveshaft Left [2016-2020, B4204T23, TG-81SC | 2016-2020, B4204T23; B4204T27, TG-81SC AWD | 2016-2019, B4204T28, TG-81SC | 2020, B4204T28; B4204T39, TG-81SD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

WARNING:

Do not use magnets or magnetic tools close to tooth wheels, drive shafts or wheel hubs. A magnetized tooth wheel will lose its function and generate incorrect signals resulting in fault codes.

Remove the wheel, refer to: WHEELS

Courtesy of VOLVO CARS CORPORATION

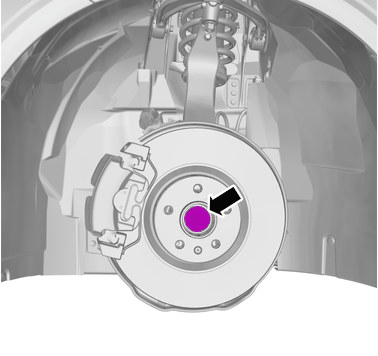

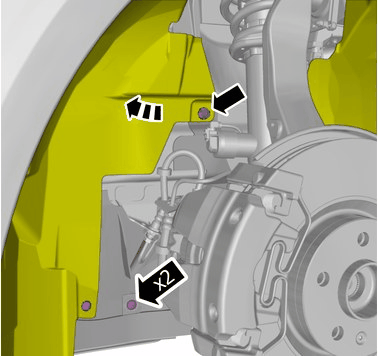

Remove the nut.

Remove the screws.

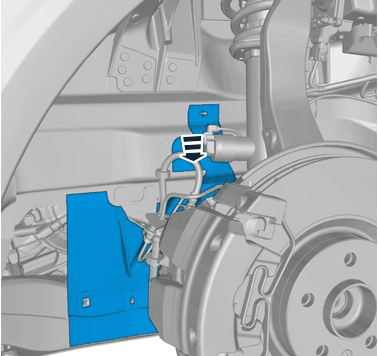

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

VEHICLES WITH THE 4C SYSTEM.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: M5, 5Nm

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

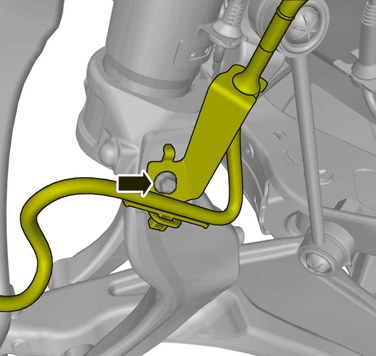

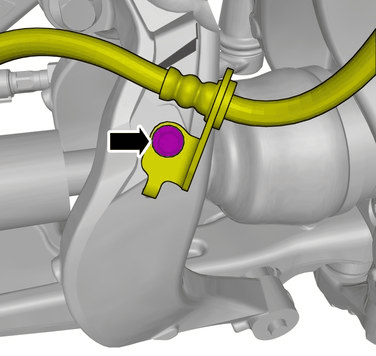

Remove the screw.

Torque: M5, 5Nm

Courtesy of VOLVO CARS CORPORATION

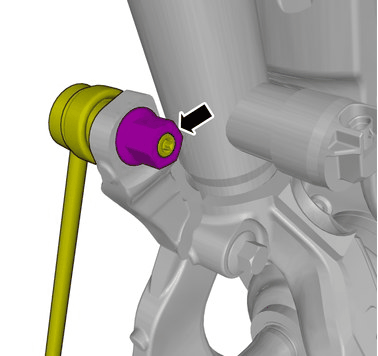

Remove the nut.

Torque: Front stabilizer bar link to strut and spring assembly, 80Nm

Courtesy of VOLVO CARS CORPORATION

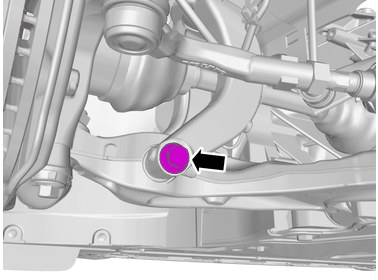

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

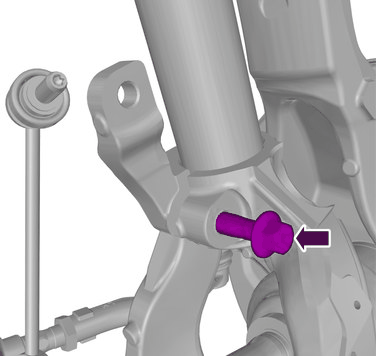

Remove the screw.

IMPORTANT: There are two different torque specifications, note year ranges.

Torque: Driveshaft to wheel hub (front), [2016-2018, 2020] models

Stage 1: 45 Nm
Stage 2: 90 °

Torque: Driveshaft to wheel hub (front), [2019] models only

Stage 1: 35 Nm
Stage 2: 90 °

Courtesy of VOLVO CARS CORPORATION

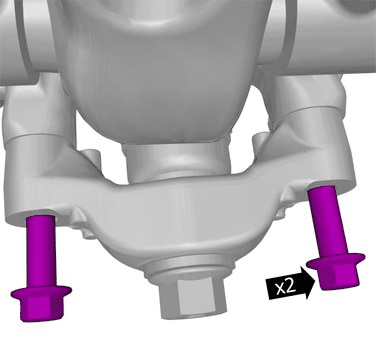

Remove the screws.

Torque: Wheel knuckle bracket, to wheel knuckle, 110Nm

Courtesy of VOLVO CARS CORPORATION

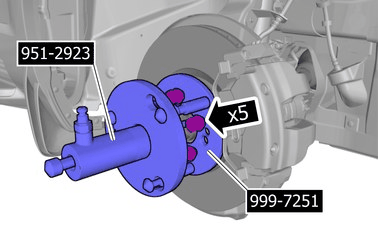

Refer to: Special Tool: 951 2923 and Special Tool: 999 7251

Courtesy of VOLVO CARS CORPORATION

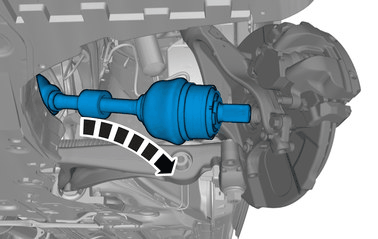

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

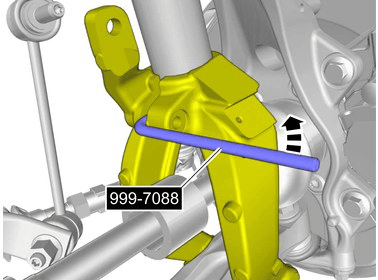

Loosen the marked detail.

Refer to: Special Tool: 999 7088

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

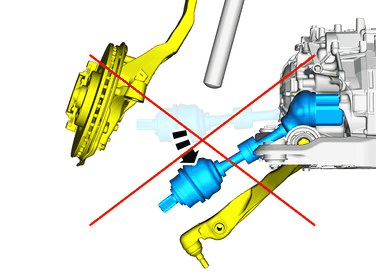

CAUTION:

Ensure that the component is supported while not connected to the wheel hub to avoid risk for damage on the inner joint.

Courtesy of VOLVO CARS CORPORATION

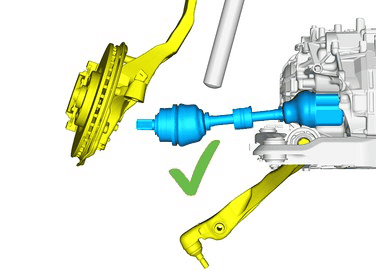

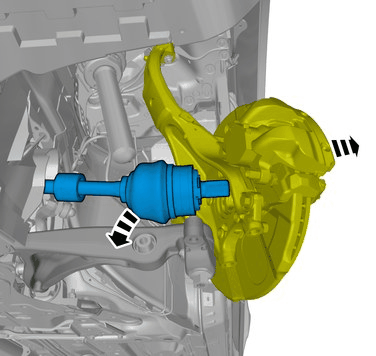

CAUTION:

Ensure that the component is supported while not connected to the wheel hub to avoid risk for damage on the inner joint.

Courtesy of VOLVO CARS CORPORATION

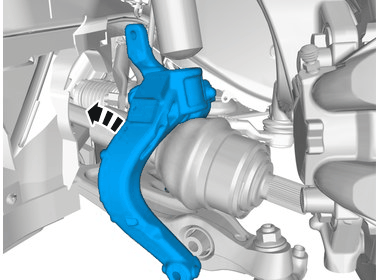

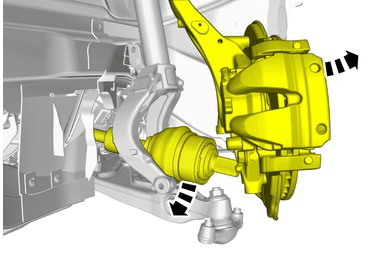

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to damage the seal.

Use: Pry bar

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to damage the seal.

Remove the marked part.
