Driveshaft Left [2016-2020, B4204T23, TG-81SC | 2016-2020, B4204T23; B4204T27, TG-81SC AWD | 2016-2019, B4204T28, TG-81SC | 2020, B4204T28; B4204T39, TG-81SD]: Installation
NOTE:

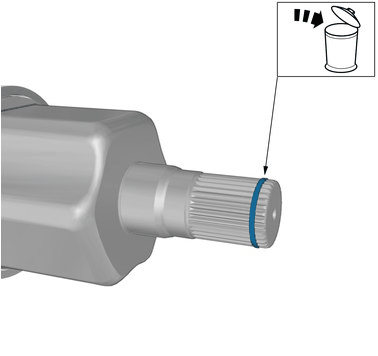

Make sure that a new component is installed.
NOTE:
Make sure that a new component is installed.

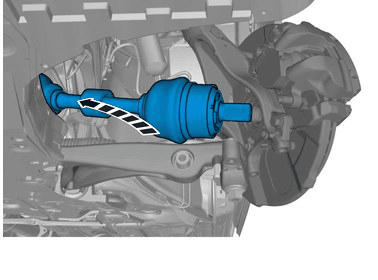

To install, reverse the removal procedure.
CAUTION:
Take extra care not to damage the seal.
NOTE:
A click confirms that the component is in the correct position.
Install the marked component.
CAUTION:
Make sure that the component is positioned correctly.

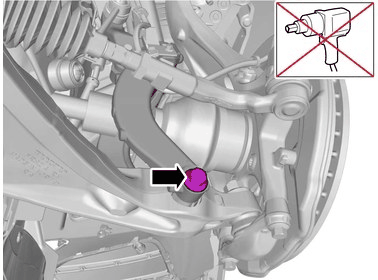

Tighten the screw.
Torque: Shock Absorber Fork, to Shock Absorber, 60Nm
CAUTION:
Take extra care not to damage the thread during installation.
NOTE:
Only tighten the nuts and bolts when the suspension is in the normal drive position.

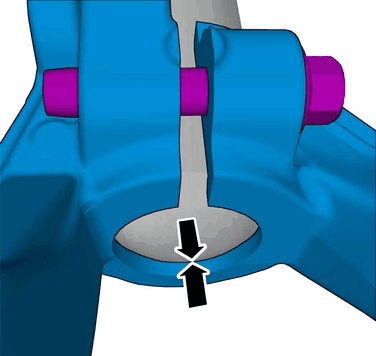

Torque: Shock Absorber Fork to Front Lower Control Arm,
- Stage 1: 140 Nm
- Stage 2: 180 °
See information about normal position, refer to: NORMAL POSITION
