Drive Flange Final Drive [2016-2019, B4204T23, TG-81SC AWD | 2016-2019, B4204T27, TG-81SC AWD]: Removal
NOTE:
Removal steps in this procedure may contain installation details.

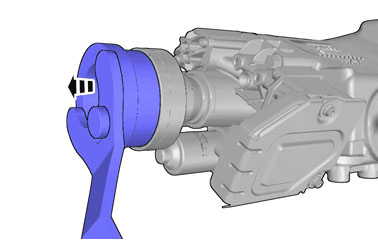

Remove the propeller shaft, refer to: PROPELLER SHAFT
Refer to: Special Tool: 999 5759
Remove the nut.
Torque: Pinion nut for clutch AOC, 150Nm

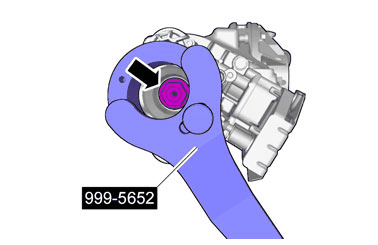

Refer to: Special Tool: 999 5652
CAUTION:
Note the position of the component before removal.
WARNING:
Be prepared to collect escaping fluid.

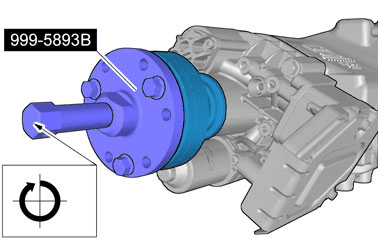

Refer to: Special Tool: 999 5893
